- All cartridges have internal coolant supply directed to the cutting edge.
- 0,01mm diameter adjustment within a range of 0,3mm.
- Radial adjustment without influence on axial position.
- Axial adjustment range of 1mm.

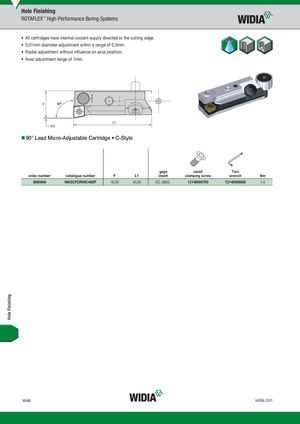

90° Lead Micro-Adjustable Cartridge C-Style
gage insert Torx
| order number | catalogue number | F | L1 | insert | clamping screw | wrench | Nm | ||
| 3860908 | MASCFCR09CA06F | 16,00 | 45,50 | CC..0602.. | 12148068700 | 12148086600 | 1,0 |
