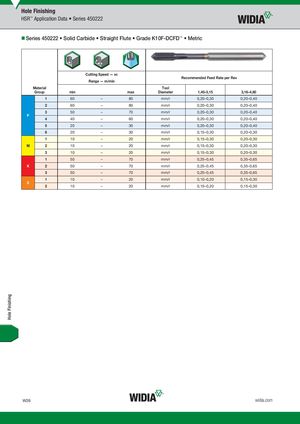

Series 450222 • Solid Carbide • Straight Flute • Grade K10F-DCFD™ • Metric
| Cutting Speed — vc Range — m/min | Re | commended Feed Rate p | er Rev | ||
| Material Group | min | max | Tool Diameter | 1,40–3,15 | 3,16–4,80 |
| 1 | 60 | – 80 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 2 | 60 | – 80 | mm/r | 0,20–0,30 | 0,20–0,40 |
| P 3 | 50 | – 70 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 4 | 40 | – 60 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 5 | 20 | – 30 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 6 | 20 | – 30 | mm/r | 0,15–0,30 | 0,20–0,30 |
| 1 | 10 | – 20 | mm/r | 0,15–0,30 | 0,20–0,30 |
| M 2 | 10 | – 20 | mm/r | 0,15–0,30 | 0,20–0,30 |
| 3 | 10 | – 20 | mm/r | 0,15–0,30 | 0,20–0,30 |
| 1 | 50 | – 70 | mm/r | 0,25–0,45 | 0,35–0,65 |
| K 2 | 50 | – 70 | mm/r | 0,25–0,45 | 0,35–0,65 |
| 3 | 50 | – 70 | mm/r | 0,25–0,45 | 0,35–0,65 |
| S 1 | 10 | – 20 | mm/r | 0,10–0,20 | 0,15–0,30 |
| 2 | 10 | – 20 | mm/r | 0,10–0,20 | 0,15–0,30 |
