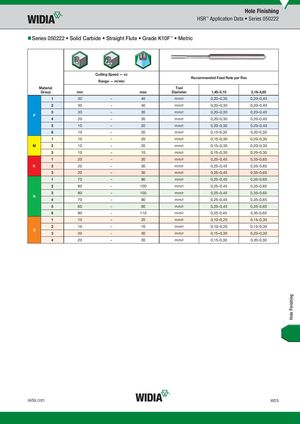

Series 050222 • Solid Carbide • Straight Flute • Grade K10F™ • Metric
| Cutting Speed — v Range — m/min | c | Reco | mmended Feed Rate pe | r Rev | ||
| Material Group | min | max | Tool Diameter | 1,40–3,15 | 3,16–4,80 | |
| 1 | 30 | – | 40 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 2 | 30 | – | 40 | mm/r | 0,20–0,30 | 0,20–0,40 |
| P 3 | 30 | – | 30 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 4 | 20 | – | 30 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 5 | 10 | – | 20 | mm/r | 0,20–0,30 | 0,20–0,40 |
| 6 | 10 | – | 20 | mm/r | 0,15-0,30 | 0,20-0,30 |
| 1 | 10 | – | 20 | mm/r | 0,15–0,30 | 0,20–0,30 |
| M 2 | 10 | – | 20 | mm/r | 0,15–0,30 | 0,20–0,30 |
| 3 | 10 | – | 10 | mm/r | 0,15–0,30 | 0,20–0,30 |
| 1 | 20 | – | 30 | mm/r | 0,25–0,45 | 0,35–0,65 |
| K 2 | 20 | – | 30 | mm/r | 0,25–0,45 | 0,35–0,65 |
| 3 | 20 | – | 30 | mm/r | 0,25–0,45 | 0,35–0,65 |
| 1 | 70 | – | 90 | mm/r | 0,25–0,45 | 0,35–0,65 |
| 2 | 80 | – | 100 | mm/r | 0,25–0,45 | 0,35–0,65 |
| N 3 | 80 | – | 100 | mm/r | 0,25–0,45 | 0,35–0,65 |
| 4 | 70 | – | 90 | mm/r | 0,25–0,45 | 0,35–0,65 |
| 5 | 60 | – | 80 | mm/r | 0,25–0,45 | 0,35–0,65 |
| 6 | 90 | – | 110 | mm/r | 0,25-0,45 | 0,35-0,65 |
| 1 | 10 | – | 20 | mm/r | 0,10–0,20 | 0,15–0,30 |
| S 2 | 10 | – | 10 | mm/r | 0,10–0,20 | 0,15–0,30 |
| 3 | 20 | – | 30 | mm/r | 0,15–0,30 | 0,20–0,30 |
| 4 | 20 | – | 30 | mm/r | 0,15-0,30 | 0,20-0,30 |
