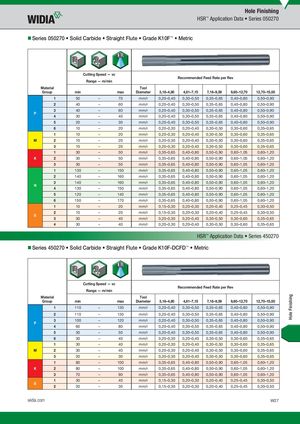

- Series 050270 • Solid Carbide • Straight Flute • Grade K10F™ • Metric
| Cutt Ra | ing Speed nge — m/m | — vc in | R | ecommended | Feed Rate per | Rev | |||
| Material | Tool | ||||||||
| Group | min | max | Diameter | 3,16–4,80 | 4,81–7,15 | 7,16–9,59 | 9,60–12,70 | 12,70–15,00 | |
| 1 | 50 | – | 70 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 2 | 40 | – | 60 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| P 3 | 40 | – | 60 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 4 | 30 | – | 40 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 5 | 20 | – | 30 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 6 | 10 | – | 20 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 1 | 10 | – | 20 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| M 2 | 10 | – | 20 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 3 | 10 | – | 20 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 1 | 30 | – | 50 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| K 2 | 30 | – | 50 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 3 | 30 | – | 50 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 1 | 130 | – | 150 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 2 | 140 | – | 160 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| N 3 | 140 | – | 160 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 4 | 130 | – | 150 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 5 | 120 | – | 140 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 6 | 150 | – | 170 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 1 | 10 | – | 20 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 | 0,30–0,50 |
| 2 | 10 | – | 20 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 | 0,30–0,50 |
| S 3 | 30 | – | 40 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 4 | 30 | – | 40 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
HSR™ Application Data • Series 450270
- Series 450270 • Solid Carbide • Straight Flute • Grade K10F-DCFD™ • Metric
Cutting Speed — vc Recommended Feed Rate per Rev Range — m/min
| Cutting Speed Range — m/m | — vc in | Recommended | Feed Rate per | Rev | ||||
| Material Group | min | max | Tool Diameter | 3,16–4,80 | 4,81–7,15 | 7,16–9,59 | 9,60–12,70 | 12,70–15,00 |
| 1 | 110 – | 130 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 2 | 110 – | 130 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| P 3 | 100 – | 120 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 4 | 60 – | 80 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 5 | 30 – | 50 | mm/r | 0,20–0,40 | 0,30–0,50 | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 6 | 30 – | 40 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 1 | 30 – | 40 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| M 2 | 30 – | 40 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 3 | 20 – | 30 | mm/r | 0,20–0,30 | 0,20–0,40 | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 1 | 80 – | 100 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| K 2 | 80 – | 100 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 3 | 70 – | 90 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 | 0,60–1,05 | 0,60–1,20 |
| 1 | 30 – | 40 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 | 0,30–0,50 |
| S 2 | 20 – | 30 | mm/r | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 | 0,30–0,50 |
