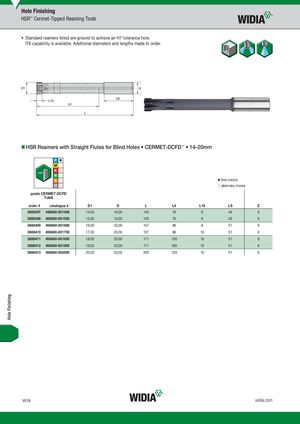

HSR™ Cermet-Tipped Reaming Tools
- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 capability is available. Additional diameters and lengths made to order.
HSR Reamers with Straight Flutes for Blind Holes CERMET-DCFD™ 14–20mm
first choice alternate choice grade CERMET-DCFDCERMETDCFD TiAlN
| order # catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 3888407 456680-001400 | 14,00 | 16,00 | 145 | 76 | 8 | 49 | 6 |
| 3888408 456680-001500 | 15,00 | 16,00 | 145 | 76 | 8 | 49 | 6 |
| 3888409 456680-001600 | 16,00 | 20,00 | 157 | 86 | 8 | 51 | 6 |
| 3888410 456680-001700 | 17,00 | 20,00 | 157 | 86 | 10 | 51 | 6 |
| 3888411 456680-001800 | 18,00 | 20,00 | 171 | 100 | 10 | 51 | 6 |
| 3888412 456680-001900 | 19,00 | 20,00 | 171 | 100 | 10 | 51 | 6 |
| 3888413 456680-002000 | 20,00 | 20,00 | 200 | 129 | 10 | 51 | 6 |
