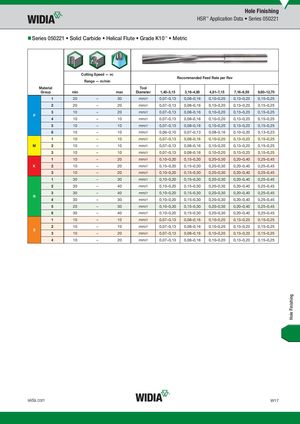

Series 050221 • Solid Carbide • Helical Flute • Grade K10™ • Metric
| Cutt Ra | ing Speed — nge — m/mi | vc n | Re | commended F | eed Rate per R | ev | |||
| Material | Tool | ||||||||
| Group | min | max | Diameter | 1,40–3,15 | 3,16–4,80 | 4,81–7,15 | 7,16–9,59 | 9,60–12,70 | |
| 1 | 20 | – | 30 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 2 | 20 | – | 20 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| P 3 | 10 | – | 20 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 4 | 10 | – | 10 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 5 | 10 | – | 10 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 6 | 10 | – | 10 | mm/r | 0,06–0,10 | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 |
| 1 | 10 | – | 10 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| M 2 | 10 | – | 10 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 3 | 10 | – | 10 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 1 | 10 | – | 20 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| K 2 | 10 | – | 20 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| 3 | 10 | – | 20 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| 1 | 30 | – | 30 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| 2 | 30 | – | 40 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| N 3 | 30 | – | 40 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| 4 | 30 | – | 30 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| 5 | 20 | – | 30 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| 6 | 30 | – | 40 | mm/r | 0,10–0,20 | 0,15–0,30 | 0,20–0,30 | 0,20–0,40 | 0,25–0,45 |
| 1 | 10 | – | 10 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| S 2 | 10 | – | 10 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 3 | 10 | – | 20 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
| 4 | 10 | – | 20 | mm/r | 0,07–0,13 | 0,08–0,16 | 0,10–0,20 | 0,13–0,23 | 0,15–0,25 |
