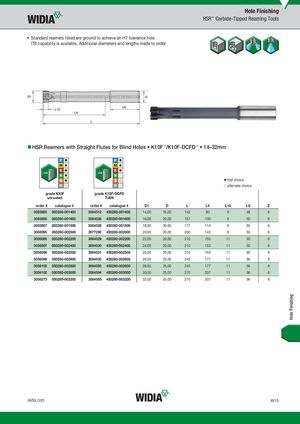

HSR™ Carbide-Tipped Reaming Tools
- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 capability is available. Additional diameters and lengths made to order.
HSR Reamers with Straight Flutes for Blind Holes K10F™/K10F-DCFD™ 14–32mm
first choice alternate choice grade K10FK10F grade K10F-DCFDK10F-DCFD uncoated TiAlN
| order # catalogue # | order # catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 3055655 050280-001400 | 3084512 450280-001400 | 14,00 | 16,00 | 145 | 90 | 9 | 48 | 6 |
| 3055656 050280-001600 | 3084526 450280-001600 | 16,00 | 20,00 | 157 | 100 | 9 | 50 | 6 |
| 3055657 050280-001800 | 3084528 450280-001800 | 18,00 | 20,00 | 171 | 114 | 9 | 50 | 6 |
| 3056095 050280-002000 | 3077292 450280-002000 | 20,00 | 20,00 | 200 | 143 | 9 | 50 | 6 |
| 3056096 050280-002200 | 3084529 450280-002200 | 22,00 | 20,00 | 210 | 153 | 11 | 50 | 6 |
| 3056097 050280-002400 | 3084530 450280-002400 | 24,00 | 20,00 | 210 | 153 | 11 | 50 | 6 |
| 3056098 050280-002500 | 3084531 450280-002500 | 25,00 | 20,00 | 210 | 153 | 11 | 50 | 6 |
| 3056099 050280-002600 | 3084532 450280-002600 | 26,00 | 25,00 | 240 | 177 | 11 | 56 | 8 |
| 3056100 050280-002800 | 3084593 450280-002800 | 28,00 | 25,00 | 240 | 177 | 11 | 56 | 8 |
| 3056102 050280-003000 | 3084594 450280-003000 | 30,00 | 25,00 | 270 | 207 | 11 | 56 | 8 |
| 3056273 050280-003200 | 3084595 450280-003200 | 32,00 | 25,00 | 270 | 207 | 11 | 56 | 8 |
