- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 capability is available. Additional diameters and lengths made to order.

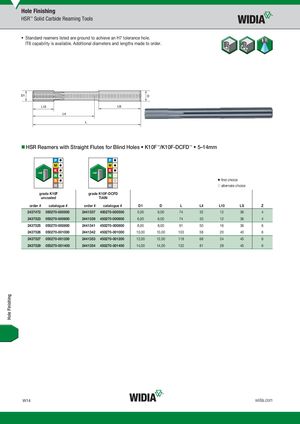

HSR Reamers with Straight Flutes for Blind Holes K10F™/K10F-DCFD™ 5–14mm
first choice
| �first ch �alterna | i oice te choice | |||||||
| K10F K1 grade K10F uncoated grade | 0F-DCFD K10F-DCFD TiAlN | |||||||
| order # catalogue # order # | catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 2437472 050270-000500 2441337 | 450270-000500 | 5,00 | 6,00 | 74 | 32 | 12 | 36 | 4 |
| 2437523 050270-000600 2441339 | 450270-000600 | 6,00 | 6,00 | 74 | 33 | 12 | 36 | 4 |
| 2437525 050270-000800 2441341 | 450270-000800 | 8,00 | 8,00 | 91 | 50 | 16 | 36 | 6 |
| 2437526 050270-001000 2441342 | 450270-001000 | 10,00 | 10,00 | 103 | 58 | 20 | 40 | 6 |
| 2437527 050270-001200 2441353 | 450270-001200 | 12,00 | 12,00 | 118 | 68 | 24 | 45 | 6 |
| 2437529 050270-001400 2441354 | 450270-001400 | 14,00 | 14,00 | 132 | 81 | 28 | 45 | 6 |
