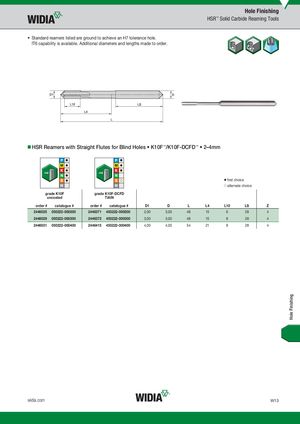

- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 capability is available. Additional diameters and lengths made to order.
HSR Reamers with Straight Flutes for Blind Holes K10F™/K10F-DCFD™ 2–4mm
first choice alternate choice grade K10FK10F grade K10F-DCFDK10F-DCFD uncoated TiAlN
| order # catalogue # | order # catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 2446025 050222-000200 | 2446371 450222-000200 | 2,00 | 3,00 | 48 | 15 | 6 | 28 | 4 |
| 2446029 050222-000300 | 2446372 450222-000300 | 3,00 | 3,00 | 48 | 15 | 8 | 28 | 4 |
| 2446031 050222-000400 | 2446415 450222-000400 | 4,00 | 4,00 | 54 | 21 | 8 | 28 | 4 |
