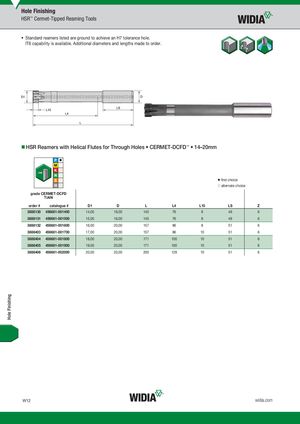

HSR™ Cermet-Tipped Reaming Tools
- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 capability is available. Additional diameters and lengths made to order.
HSR Reamers with Helical Flutes for Through Holes CERMET-DCFD™ 14–20mm
first choice
| �first choice �alternate choice | ||||||
| CERMETDCFD grade CERMET-DCFD TiAlN | ||||||
| order # catalogue # | D1 | D | L | L4 | L10 | LS Z |
| 3888130 456681-001400 | 14,00 | 16,00 | 145 | 76 | 8 | 49 6 |
| 3888131 456681-001500 | 15,00 | 16,00 | 145 | 76 | 8 | 49 6 |
| 3888132 456681-001600 | 16,00 | 20,00 | 157 | 86 | 8 | 51 6 |
| 3888403 456681-001700 | 17,00 | 20,00 | 157 | 86 | 10 | 51 6 |
| 3888404 456681-001800 | 18,00 | 20,00 | 171 | 100 | 10 | 51 6 |
| 3888405 456681-001900 | 19,00 | 20,00 | 171 | 100 | 10 | 51 6 |
| 3888406 456681-002000 | 20,00 | 20,00 | 200 | 129 | 10 | 51 6 |
