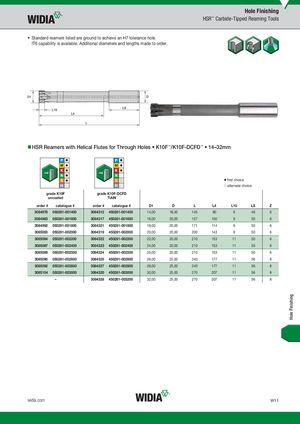

HSR™ Carbide-Tipped Reaming Tools
- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 capability is available. Additional diameters and lengths made to order.
HSR Reamers with Helical Flutes for Through Holes K10F™/K10F-DCFD™ 14–32mm
first choice alternate choice grade K10FK10F grade K10F-DCFDK10F-DCFD uncoated TiAlN
| order # catalogue # | order # catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 3084978 050281-001400 | 3084312 450281-001400 | 14,00 | 16,00 | 145 | 90 | 9 | 48 | 6 |
| 3084983 050281-001600 | 3084317 450281-001600 | 16,00 | 20,00 | 157 | 100 | 9 | 50 | 6 |
| 3084992 050281-001800 | 3084321 450281-001800 | 18,00 | 20,00 | 171 | 114 | 9 | 50 | 6 |
| 3085083 050281-002000 | 3084319 450281-002000 | 20,00 | 20,00 | 200 | 143 | 9 | 50 | 6 |
| 3085084 050281-002200 | 3084322 450281-002200 | 22,00 | 20,00 | 210 | 153 | 11 | 50 | 6 |
| 3085087 050281-002400 | 3084323 450281-002400 | 24,00 | 20,00 | 210 | 153 | 11 | 50 | 6 |
| 3085089 050281-002500 | 3084324 450281-002500 | 25,00 | 20,00 | 210 | 153 | 11 | 50 | 6 |
| 3085090 050281-002600 | 3084325 450281-002600 | 26,00 | 25,00 | 240 | 177 | 11 | 56 | 8 |
| 3085092 050281-002800 | 3084327 450281-002800 | 28,00 | 25,00 | 240 | 177 | 11 | 56 | 8 |
| 3085104 050281-003000 | 3084320 450281-003000 | 30,00 | 25,00 | 270 | 207 | 11 | 56 | 8 |
| – 3084328 450281-003200 | 32,00 | 25,00 | 270 | 207 | 11 | 56 | 8 |
