- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 capability is available. Additional diameters and lengths made to order.

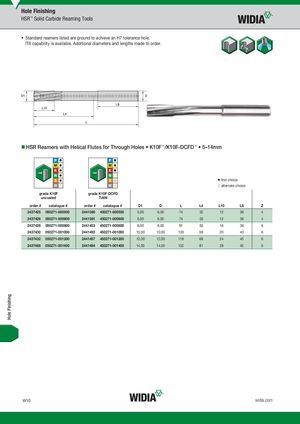

HSR Reamers with Helical Flutes for Through Holes K10F™/K10F-DCFD™ 5–14mm
first choice
| �first ch �alterna | i oice te choice | |||||||
| K10F K1 grade K10F uncoated grade | 0F-DCFD K10F-DCFD TiAlN | |||||||
| order # catalogue # order # | catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 2437425 050271-000500 2441380 | 450271-000500 | 5,00 | 6,00 | 74 | 32 | 12 | 36 | 4 |
| 2437426 050271-000600 2441381 | 450271-000600 | 6,00 | 6,00 | 74 | 33 | 12 | 36 | 4 |
| 2437428 050271-000800 2441453 | 450271-000800 | 8,00 | 8,00 | 91 | 50 | 16 | 36 | 6 |
| 2437430 050271-001000 2441455 | 450271-001000 | 10,00 | 10,00 | 103 | 58 | 20 | 40 | 6 |
| 2437432 050271-001200 2441457 | 450271-001200 | 12,00 | 12,00 | 118 | 68 | 24 | 45 | 6 |
| 2437468 050271-001400 2441494 | 450271-001400 | 14,00 | 14,00 | 132 | 81 | 28 | 45 | 6 |
