- Standard reamers listed are ground to achieve an H7 tolerance hole. IT6 hole tolerance capability starting at diameter 10mm is available as a Custom Solution. Additional diameters and lengths made to order.

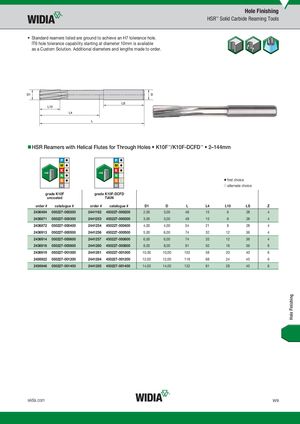

HSR Reamers with Helical Flutes for Through Holes K10F™/K10F-DCFD™ 2–144mm
first choice alternate choice grade K10FK10F grade K10F-DCFDK10F-DCFD uncoated TiAlN
| order # catalogue # | order # catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 2436494 050227-000200 | 2441162 450227-000200 | 2,00 | 3,00 | 48 | 15 | 6 | 28 | 4 |
| 2436871 050227-000300 | 2441253 450227-000300 | 3,00 | 3,00 | 48 | 15 | 6 | 28 | 4 |
| 2436872 050227-000400 | 2441254 450227-000400 | 4,00 | 4,00 | 54 | 21 | 8 | 28 | 4 |
| 2436913 050227-000500 | 2441256 450227-000500 | 5,00 | 6,00 | 74 | 32 | 12 | 36 | 4 |
| 2436914 050227-000600 | 2441257 450227-000600 | 6,00 | 6,00 | 74 | 33 | 12 | 36 | 4 |
| 2436916 050227-000800 | 2441260 450227-000800 | 8,00 | 8,00 | 91 | 50 | 16 | 36 | 6 |
| 2436919 050227-001000 | 2441261 450227-001000 | 10,00 | 10,00 | 103 | 58 | 20 | 40 | 6 |
| 2436922 050227-001200 | 2441284 450227-001200 | 12,00 | 12,00 | 118 | 68 | 24 | 45 | 6 |
| 2436946 050227-001400 | 2441285 450227-001400 | 14,00 | 14,00 | 132 | 81 | 28 | 45 | 6 |
