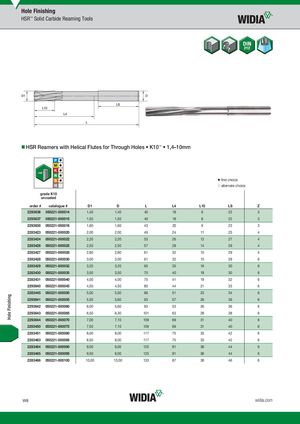

HSR Reamers with Helical Flutes for Through Holes • K10™ • 1,4–10mm
first choice alternate choice grade K10K10 uncoated
| order # catalogue # | D1 | D | L | L4 | L10 | LS | Z |
| 2293636 050221-000014 | 1,40 | 1,40 | 40 | 18 | 8 | 22 | 3 |
| 2293637 050221-000015 | 1,50 | 1,50 | 40 | 18 | 8 | 22 | 3 |
| 2293638 050221-000016 | 1,60 | 1,60 | 43 | 20 | 9 | 23 | 3 |
| 2283423 050221-000020 | 2,00 | 2,00 | 49 | 24 | 11 | 25 | 4 |
| 2283424 050221-000022 | 2,20 | 2,20 | 53 | 26 | 12 | 27 | 4 |
| 2283426 050221-000025 | 2,50 | 2,50 | 57 | 28 | 14 | 29 | 4 |
| 2283427 050221-000028 | 2,80 | 2,80 | 61 | 32 | 15 | 29 | 4 |
| 2283428 050221-000030 | 3,00 | 3,00 | 61 | 32 | 15 | 29 | 6 |
| 2283429 050221-000032 | 3,20 | 3,20 | 65 | 35 | 16 | 30 | 6 |
| 2283430 050221-000035 | 3,50 | 3,50 | 70 | 40 | 18 | 30 | 6 |
| 2283431 050221-000040 | 4,00 | 4,00 | 75 | 41 | 19 | 32 | 6 |
| 2293640 050221-000045 | 4,50 | 4,50 | 80 | 44 | 21 | 33 | 6 |
| 2283445 050221-000050 | 5,00 | 5,00 | 86 | 51 | 23 | 34 | 6 |
| 2293641 050221-000055 | 5,50 | 5,60 | 93 | 57 | 26 | 36 | 6 |
| 2293642 050221-000060 | 6,00 | 5,60 | 93 | 53 | 26 | 36 | 6 |
| 2293643 050221-000065 | 6,50 | 6,30 | 101 | 63 | 28 | 38 | 6 |
| 2293644 050221-000070 | 7,00 | 7,10 | 109 | 69 | 31 | 40 | 6 |
| 2283450 050221-000075 | 7,50 | 7,10 | 109 | 69 | 31 | 40 | 6 |
| 2283451 050221-000080 | 8,00 | 8,00 | 117 | 75 | 33 | 42 | 6 |
| 2283463 050221-000085 | 8,50 | 8,00 | 117 | 75 | 33 | 42 | 6 |
| 2283464 050221-000090 | 9,00 | 9,00 | 125 | 81 | 36 | 44 | 6 |
| 2283465 050221-000095 | 9,50 | 9,00 | 125 | 81 | 36 | 44 | 6 |
| 2283466 050221-000100 | 10,00 | 10,00 | 133 | 87 | 38 | 46 | 6 |
