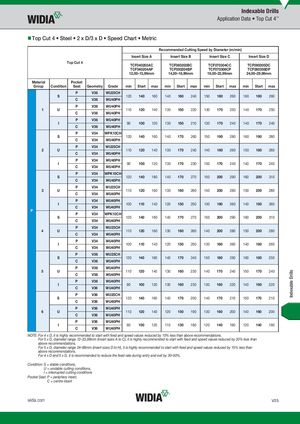

		Top Cut 4			In TC TC 12,0	sert Size F040203 F040204 0–13,99	R A AC AP mm	ecomm In TC TC 14,0	ended C sert Size F060203 F050204 0–18,99	utting S B BC BP mm	peed by In TC TC 19,0	Diamet sert Size F070304 F070306 0–23,99	er (m/mi C CC CP mm	n) Ins TC TC 24,0	ert Size F090305 F080308 0–29,99	D DC DP mm
Material		Pocket
Group	Condition	Seat	Geometry	Grade	min	Start	max	min	Start	max	min	Start	max	min	Start	max
	S	P C	V36 V36	WU25CH WU40PH	120	140	160	140	160	240	150	180	260	160	180	260
1	U	P C	V36 V36	WU40PH WU40PH	110	120	140	130	150	220	130	170	250	140	170	250
	I	P C	V36 V36	WU40PH WU40PH	90	100	120	130	150	210	130	170	240	140	170	240
	S	P C	V34 V34	WPK10CH WU40PH	120	140	160	140	170	260	150	190	280	160	190	280
2	U	P C	V34 V34	WU25CH WU40PH	110	120	140	130	170	240	140	180	260	150	180	260
	I	P C	V34 V34	WU40PH WU40PH	90	100	120	130	170	230	130	170	240	140	170	240
	S	P C	V34 V34	WPK10CH WU40PH	120	140	180	140	170	270	150	200	290	160	200	310
3	U	P C	V34 V34	WU25CH WU40PH	110	120	160	130	160	260	140	200	280	150	200	280
	I	P C	V34 V34	WU40PH WU40PH	100	110	140	120	150	250	130	180	260	140	180	260
P	S	P C	V34 V34	WPK10CH WU40PH	120	140	180	140	170	270	150	200	290	160	200	310
4	U	P C	V34 V34	WU25CH WU40PH	110	120	160	130	160	260	140	200	280	150	200	280
	I	P C	V34 V34	WU40PH WU40PH	100	110	140	120	150	250	130	180	260	140	180	260
	S	P C	V36 V36	WU25CH WU40PH	120	140	160	140	170	240	150	180	250	160	180	250
5	U	P C	V36 V36	WU40PH WU40PH	110	120	140	130	160	230	140	170	240	150	170	240
	I	P C	V36 V36	WU40PH WU40PH	90	100	120	130	160	230	130	160	220	140	160	220
	S	P C	V36 V36	WU25CH WU40PH	120	140	160	140	170	200	140	170	210	150	170	210
6	U	P C	V36 V36	WU40PH WU40PH	110	120	140	120	150	190	130	160	200	140	160	200
	I	P C	V36 V36	WU40PH WU40PH	90	100	120	110	130	180	120	140	190	120	140	190

above recommendations. For 4 x D and 5 x D, it is recommended to reduce the feed rate during entry and exit by 30–50%. Condition: S = stable conditions, U = unstable cutting conditions, I = interrupted cutting conditions Pocket Seat: P = periphery insert, C = centre insert
