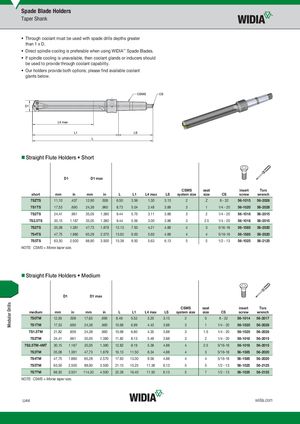

Taper Shank
- Through coolant must be used with spade drills depths greater than 1 x D.
- Direct spindle cooling is preferable when using WIDIA™ Spade Blades.
- If spindle cooling is unavailable, then coolant glands or inducers should be used to provide through coolant capability.
- Our holders provide both options; please find available coolant glants below.
- Straight Flute Holders Short
D1 D1 max
CSMS seat insert Torx
| short | mm | in | mm | in | L | L1 | L4 max | LS | system size | size | CS | screw | wrench |
| 7SZTS | 11,10 | .437 | 12,90 | .508 | 6.50 | 3.56 | 1.30 | 3.13 | 2 | Z | 8 - 32 | 56-1015 | 56-2026 |
| 7S1TS | 17,53 | .690 | 24,38 | .960 | 8.73 | 5.04 | 2.48 | 3.88 | 3 | 1 | 1/4 - 20 | 56-1020 | 56-2028 |
| 7S2TS | 24,41 | .961 | 35,05 | 1.380 | 9.44 | 5.75 | 3.11 | 3.88 | 3 | 2 | 1/4 - 20 | 56-1018 | 56-2015 |
| 7S2.5TS | 30,15 | 1.187 | 35,05 | 1.380 | 9.44 | 5.56 | 3.00 | 3.88 | 3 | 2.5 | 1/4 - 20 | 56-1018 | 56-2015 |
| 7S3TS | 35,08 | 1.381 | 47,73 | 1.879 | 12.13 | 7.50 | 4.21 | 4.88 | 4 | 3 | 5/16-18 | 56-1585 | 56-2020 |
| 7S4TS | 47,75 | 1.880 | 65,28 | 2.570 | 13.62 | 9.00 | 5.60 | 4.88 | 4 | 4 | 5/16-18 | 56-1585 | 56-2020 |
| 7S5TS | 63,50 | 2.500 | 88,90 | 3.500 | 15.38 | 9.50 | 5.63 | 6.13 | 5 | 5 | 1/2 - 13 | 56-1025 | 56-2125 |
NOTE: CSMS = Morse taper size.
- Straight Flute Holders Medium
D1 D1 max
CSMS seat insert Torx
| medium | mm | in | mm | in | L | L1 | L4 max | LS | system size | size | CS | screw | wrench |
| 7S0TM | 12,93 | .509 | 17,65 | .695 | 8.46 | 5.52 | 3.20 | 3.13 | 2 | 0 | 8 - 32 | 56-1014 | 56-2017 |
| 7S1TM | 17,53 | .690 | 24,38 | .960 | 10.68 | 6.99 | 4.43 | 3.88 | 3 | 1 | 1/4 - 20 | 56-1020 | 56-2028 |
| 7S1.5TM | 21,82 | .859 | 24,38 | .960 | 10.68 | 6.80 | 4.35 | 3.88 | 3 | 1.5 | 1/4 - 20 | 56-1020 | 56-2028 |
| 7S2TM | 24,41 | .961 | 35,05 | 1.380 | 11.82 | 8.13 | 5.49 | 3.88 | 3 | 2 | 1/4 - 20 | 56-1018 | 56-2015 |
| 7S2.5TM-4MT | 30,15 | 1.187 | 35,05 | 1.380 | 12.82 | 8.19 | 5.38 | 4.88 | 4 | 2.5 | 5/16-18 | 56-1018 | 56-2015 |
| 7S3TM | 35,08 | 1.381 | 47,73 | 1.879 | 16.13 | 11.50 | 8.34 | 4.88 | 4 | 3 | 5/16-18 | 56-1585 | 56-2020 |
| 7S4TM | 47,75 | 1.880 | 65,28 | 2.570 | 17.63 | 13.00 | 9.58 | 4.88 | 4 | 4 | 5/16-18 | 56-1585 | 56-2020 |
| 7S5TM | 63,50 | 2.500 | 88,90 | 3.500 | 21.13 | 15.25 | 11.38 | 6.13 | 5 | 5 | 1/2 - 13 | 56-1025 | 56-2125 |
| 7S7TM | 88,93 | 3.501 | 114,30 | 4.500 | 22.28 | 16.40 | 11.50 | 6.13 | 5 | 7 | 1/2 - 13 | 56-1025 | 56-2125 |
NOTE: CSMS = Morse taper size.
