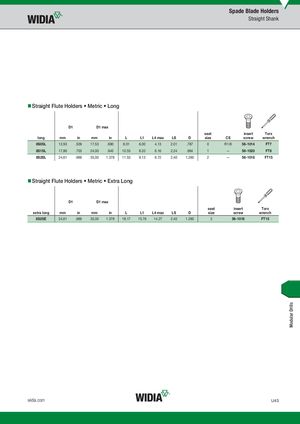

- Straight Flute Holders • Metric • Long
| long | D mm | 1 in | D1 mm | max in | L | L1 | L4 max | LS | D | seat size | CS | insert screw | Torx wrench |
| 8S0SL | 12,93 | .509 | 17,53 | .690 | 8.01 | 6.00 | 4.13 | 2.01 | .787 | 0 | R1/8 | 56-1014 | FT7 |
| 8S1SL | 17,86 | .703 | 24,00 | .945 | 10.53 | 8.33 | 6.16 | 2.24 | .984 | 1 | — | 56-1020 | FT8 |
| 8S2SL | 24,61 | .969 | 35,00 | 1.378 | 11.53 | 9.13 | 6.72 | 2.40 | 1.260 | 2 | — | 56-1018 | FT15 |
- Straight Flute Holders • Metric • Extra Long
D1 D1 max
| D1 | D1 | max | ||||||||||
| seat | insert | Torx | ||||||||||
| extra long | mm | in | mm | in | L | L1 | L4 max | LS | D | size | screw | wrench |
| 8S2SE | 24,61 | .969 | 35,00 | 1.378 | 18.17 | 15.76 | 14.27 | 2.40 | 1.260 | 2 | 56-1018 | FT15 |
