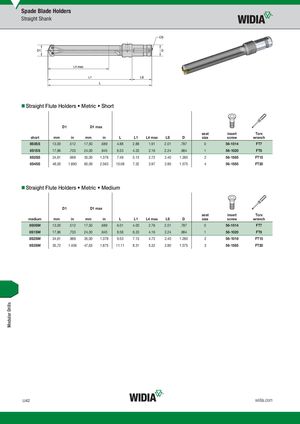

- Straight Flute Holders • Metric • Short
D1 D1 max
seat insert Torx
| short | mm | in | mm | in | L | L1 | L4 max | LS | D | size | screw | wrench |
| 8S0SS | 13,00 | .512 | 17,50 | .689 | 4.88 | 2.88 | 1.91 | 2.01 | .787 | 0 | 56-1014 | FT7 |
| 8S1SS | 17,86 | .703 | 24,00 | .945 | 6.53 | 4.33 | 2.16 | 2.24 | .984 | 1 | 56-1020 | FT8 |
| 8S2SS | 24,61 | .969 | 35,00 | 1.378 | 7.49 | 5.13 | 2.72 | 2.40 | 1.260 | 2 | 56-1585 | FT15 |
| 8S4SS | 48,00 | 1.890 | 65,09 | 2.563 | 10.08 | 7.32 | 3.97 | 2.80 | 1.575 | 4 | 56-1585 | FT20 |
- Straight Flute Holders • Metric • Medium
D1 D1 max
seat insert Torx
| medium | mm | in | mm | in | L | L1 | L4 max | LS | D | size | screw | wrench |
| 8S0SM | 13,00 | .512 | 17,50 | .689 | 6.01 | 4.00 | 2.76 | 2.01 | .787 | 0 | 56-1014 | FT7 |
| 8S1SM | 17,86 | .703 | 24,00 | .945 | 8.58 | 6.33 | 4.16 | 2.24 | .984 | 1 | 56-1020 | FT8 |
| 8S2SM | 24,61 | .969 | 35,00 | 1.378 | 9.53 | 7.13 | 4.72 | 2.40 | 1.260 | 2 | 56-1018 | FT15 |
| 8S3SM | 35,72 | 1.406 | 47,63 | 1.875 | 11.11 | 8.31 | 5.32 | 2.80 | 1.575 | 3 | 56-1585 | FT20 |
