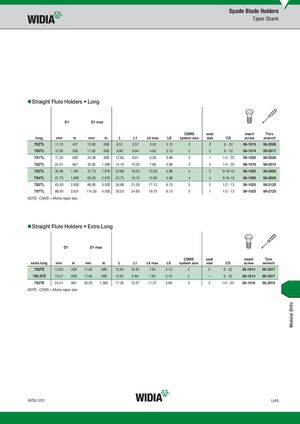

Taper Shank
- Straight Flute Holders • Long
D1 D1 max
CSMS seat insert Torx
| long | mm | in | mm | in | L | L1 | L4 max | LS | system size | size | CS | screw | wrench |
| 7SZTL | 11,10 | .437 | 12,90 | .508 | 8.51 | 5.57 | 3.30 | 3.13 | 2 | Z | 8 - 32 | 56-1015 | 56-2026 |
| 7S0TL | 12,93 | .509 | 17,65 | .695 | 9.88 | 6.94 | 4.60 | 3.13 | 2 | 0 | 8 - 32 | 56-1014 | 56-2017 |
| 7S1TL | 17,53 | .690 | 24,38 | .960 | 12.60 | 8.91 | 6.36 | 3.88 | 3 | 1 | 1/4 - 20 | 56-1020 | 56-2028 |
| 7S2TL | 24,41 | .961 | 35,05 | 1.380 | 14.19 | 10.50 | 7.86 | 3.88 | 3 | 2 | 1/4 - 20 | 56-1018 | 56-2015 |
| 7S3TL | 35,08 | 1.381 | 47,73 | 1.879 | 20.88 | 16.25 | 13.28 | 4.88 | 4 | 3 | 5/16-18 | 56-1585 | 56-2020 |
| 7S4TL | 47,75 | 1.880 | 65,28 | 2.570 | 23.75 | 19.12 | 15.90 | 4.88 | 4 | 4 | 5/16-18 | 56-1585 | 56-2020 |
| 7S5TL | 63,50 | 2.500 | 88,90 | 3.500 | 26.88 | 21.00 | 17.13 | 6.13 | 5 | 5 | 1/2 - 13 | 56-1025 | 56-2125 |
| 7S7TL | 88,93 | 3.501 | 114,30 | 4.500 | 30.53 | 24.65 | 19.75 | 6.13 | 5 | 7 | 1/2 - 13 | 56-1025 | 56-2125 |
NOTE: CSMS = Morse taper size.
- Straight Flute Holders • Extra Long
D1 D1 max
CSMS seat insert Torx
| extra long | mm | in | mm | in | L | L1 | L4 max | LS | system size | size | CS | screw | wrench | |
| 7S0TE | 12,93 | .509 | 17,65 | .695 | 12.93 | 10.00 | 7.65 | 3.13 | 2 | 0 | 8 - 32 | 56-1014 | 56-2017 | |
| 7S0.5TE | 15,47 | .609 | 17,65 | .695 | 12.93 | 9.80 | 7.60 | 3.13 | 2 | — | 8 - 32 | 56-1014 | 56-2017 | |
| 7S2TE | 24,41 | .961 | 35,05 | 1.380 | 17.26 | 13.57 | 11.07 | 3.88 | 3 | 2 | 1/4 - 20 | 56-1018 | 56-2015 |
NOTE: CSMS = Morse taper size.
