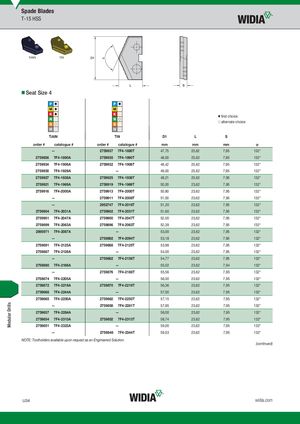

TiAlN TiN
Seat Size 4
| D1 | L | S �first choice �alternate choice | |||
| TiAlN TiAlN | TiN TiN | D1 | L | S | |
| order # catalogue # | order # catalogue # | mm | mm | mm | � |
| — | 2759937 7F4-1880T | 47,75 | 23,62 | 7,95 | 132° |
| 2759936 7F4-1890A | 2759935 7F4-1890T | 48,00 | 23,62 | 7,95 | 132° |
| 2759934 7F4-1906A | 2759932 7F4-1906T | 48,42 | 23,62 | 7,95 | 132° |
| 2759930 7F4-1929A | — | 49,00 | 23,62 | 7,95 | 132° |
| 2759927 7F4-1938A | 2759925 7F4-1938T | 49,21 | 23,62 | 7,95 | 132° |
| 2759921 7F4-1969A | 2759919 7F4-1969T | 50,00 | 23,62 | 7,95 | 132° |
| 2759916 7F4-2000A | 2759913 7F4-2000T | 50,80 | 23,62 | 7,95 | 132° |
| — | 2759911 7F4-2008T | 51,00 | 23,62 | 7,95 | 132° |
| — | 2952747 7F4-2016T | 51,20 | 23,62 | 7,95 | 132° |
| 2759904 7F4-2031A | 2759902 7F4-2031T | 51,60 | 23,62 | 7,95 | 132° |
| 2759901 7F4-2047A | 2759900 7F4-2047T | 52,00 | 23,62 | 7,95 | 132° |
| 2759899 7F4-2063A | 2759896 7F4-2063T | 52,39 | 23,62 | 7,95 | 132° |
| 2895971 7F4-2087A | — | 53,00 | 23,62 | 7,95 | 132° |
| — | 2759892 7F4-2094T | 53,18 | 23,62 | 7,95 | 132° |
| 2759891 7F4-2125A | 2759888 7F4-2125T | 53,98 | 23,62 | 7,95 | 132° |
| 2759887 7F4-2126A | — | 54,00 | 23,62 | 7,95 | 132° |
| — | 2759882 7F4-2156T | 54,77 | 23,62 | 7,95 | 132° |
| 2759880 7F4-2166A | — | 55,02 | 23,62 | 7,94 | 132° |
| — | 2759876 7F4-2188T | 55,56 | 23,62 | 7,95 | 132° |
| 2759874 7F4-2205A | — | 56,00 | 23,62 | 7,95 | 132° |
| 2759872 7F4-2219A | 2759870 7F4-2219T | 56,36 | 23,62 | 7,95 | 132° |
| 2759868 7F4-2244A | — | 57,00 | 23,62 | 7,95 | 132° |
| 2759865 7F4-2250A | 2759862 7F4-2250T | 57,15 | 23,62 | 7,95 | 132° |
| — | 2759858 7F4-2281T | 57,95 | 23,62 | 7,95 | 132° |
| 2759857 7F4-2284A | — | 58,00 | 23,62 | 7,95 | 132° |
| 2759854 7F4-2313A | 2759852 7F4-2313T | 58,74 | 23,62 | 7,95 | 132° |
| 2759851 7F4-2323A | — | 59,00 | 23,62 | 7,95 | 132° |
| — | 2759848 7F4-2344T | 59,53 | 23,62 | 7,95 | 132° |
