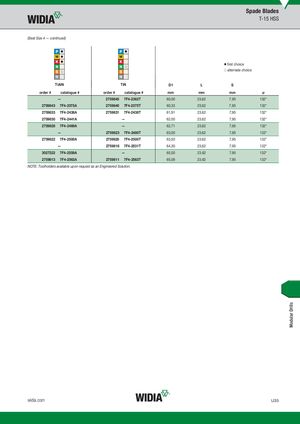

(Seat Size 4 — continued)
| D1 | L | S �first choice �alternate choice | |||
| TiAlN TiAlN | TiN TiN | D1 | L | S | |
| order # catalogue # | order # catalogue # | mm | mm | mm | � |
| — | 2759845 7F4-2362T | 60,00 | 23,62 | 7,95 | 132° |
| 2759843 7F4-2375A | 2759840 7F4-2375T | 60,33 | 23,62 | 7,95 | 132° |
| 2759833 7F4-2438A | 2759831 7F4-2438T | 61,91 | 23,62 | 7,95 | 132° |
| 2759830 7F4-2441A | — | 62,00 | 23,62 | 7,95 | 132° |
| 2759828 7F4-2469A | — | 62,71 | 23,62 | 7,95 | 132° |
| — | 2759823 7F4-2480T | 63,00 | 23,62 | 7,95 | 132° |
| 2759822 7F4-2500A | 2759820 7F4-2500T | 63,50 | 23,62 | 7,95 | 132° |
| — | 2759816 7F4-2531T | 64,30 | 23,62 | 7,95 | 132° |
| 3027222 7F4-2559A | — | 65,00 | 23,62 | 7,95 | 132° |
| 2759813 7F4-2563A | 2759811 7F4-2563T | 65,09 | 23,62 | 7,95 | 132° |
NOTE: Toolholders available upon request as an Engineered Solution.
