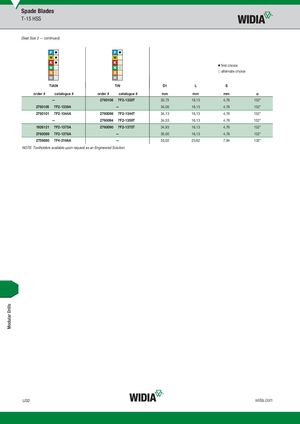

(Seat Size 2 — continued)
| D1 | L | �first choice �alternate choice S | |||
| TiAlN | TiN | D1 | L | S | |
| order # catalogue # | order # catalogue # | mm | mm | mm | � |
| — | 2760106 7F2-1328T | 33,73 | 16,13 | 4,76 | 132° |
| 2760105 7F2-1339A | — | 34,00 | 16,13 | 4,76 | 132° |
| 2760101 7F2-1344A | 2760098 7F2-1344T | 34,13 | 16,13 | 4,76 | 132° |
| — | 2760094 7F2-1359T | 34,53 | 16,13 | 4,76 | 132° |
| 1926121 7F2-1375A | 2760090 7F2-1375T | 34,93 | 16,13 | 4,76 | 132° |
| 2760089 7F2-1378A | — | 35,00 | 16,13 | 4,76 | 132° |
| 2759880 7F4-2166A | — | 55,02 | 23,62 | 7,94 | 132° |
NOTE: Toolholders available upon request as an Engineered Solution.
