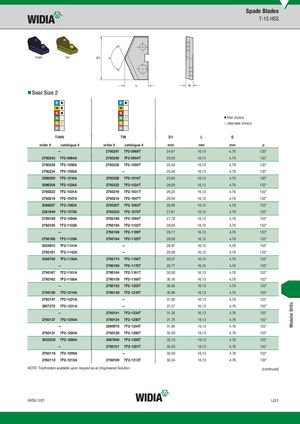

Общий каталог Widia 2017 - страница 1551
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
TiAlN TiN
Seat Size 2
| �first choice | ||||
| D1 | L | S �alternate choice | ||
| TiAlN TiAlN | TiN TiN | D1 | L | S |
| order # catalogue # | order # catalogue # | mm | mm | mm � |
| — | 2760247 7F2-0969T | 24,61 | 16,13 | 4,76 132° |
| 2760243 7F2-0984A | 2760240 7F2-0984T | 25,00 | 16,13 | 4,76 132° |
| 2760239 7F2-1000A | 2760235 7F2-1000T | 25,40 | 16,13 | 4,76 132° |
| 2760234 7F2-1003A | — | 25,48 | 16,13 | 4,76 132° |
| 3088200 7F2-1016A | 2760226 7F2-1016T | 25,80 | 16,13 | 4,76 132° |
| 3096208 7F2-1024A | 2760223 7F2-1024T | 26,00 | 16,13 | 4,76 132° |
| 2760222 7F2-1031A | 2760219 7F2-1031T | 26,20 | 16,13 | 4,76 132° |
| 2760216 7F2-1047A | 2760214 7F2-1047T | 26,59 | 16,13 | 4,76 132° |
| 3096207 7F2-1063A | 2760207 7F2-1063T | 26,99 | 16,13 | 4,76 132° |
| 2261849 7F2-1078A | 2760203 7F2-1078T | 27,61 | 16,13 | 4,76 132° |
| 2760199 7F2-1094A | 2760196 7F2-1094T | 27,78 | 16,13 | 4,76 132° |
| 2760195 7F2-1102A | 2760194 7F2-1102T | 28,00 | 16,13 | 4,76 132° |
| — | 2760189 7F2-1109T | 28,17 | 16,13 | 4,76 132° |
| 2760188 7F2-1125A | 2760184 7F2-1125T | 28,58 | 16,13 | 4,76 132° |
| 3024915 7F2-1141A | — | 28,97 | 16,13 | 4,76 132° |
| 2760181 7F2-1142A | — | 29,00 | 16,13 | 4,76 132° |
| 3088746 7F2-1156A | 2760174 7F2-1156T | 29,37 | 16,13 | 4,76 132° |
| — | 2760169 7F2-1172T | 29,77 | 16,13 | 4,76 132° |
| 2760167 7F2-1181A | 2760164 7F2-1181T | 30,00 | 16,13 | 4,76 132° |
| 2760162 7F2-1188A | 2760159 7F2-1188T | 30,16 | 16,13 | 4,76 132° |
| — | 2760152 7F2-1203T | 30,56 | 16,13 | 4,76 132° |
| 2760150 7F2-1219A | 2760148 7F2-1219T | 30,96 | 16,13 | 4,76 132° |
| 2760147 7F2-1221A | — | 31,00 | 16,13 | 4,76 132° |
| 2907272 7F2-1231A | — | 31,27 | 16,13 | 4,76 132° |
| — | 2760141 7F2-1234T | 31,35 | 16,13 | 4,76 132° |
| 2760137 7F2-1250A | 2760134 7F2-1250T | 31,75 | 16,13 | 4,76 132° |
| — | 2895976 7F2-1254T | 31,85 | 16,13 | 4,76 132° |
| 2760131 7F2-1260A | 2760128 7F2-1260T | 32,00 | 16,13 | 4,76 132° |
| 3032539 7F2-1266A | 2967699 7F2-1266T | 32,15 | 16,13 | 4,76 132° |
| — | 2760121 7F2-1281T | 32,55 | 16,13 | 4,76 132° |
| 2760118 7F2-1299A | — | 33,00 | 16,13 | 4,76 132° |
| 2760112 7F2-1313A | 2760109 7F2-1313T | 33,34 | 16,13 | 4,76 132° |
