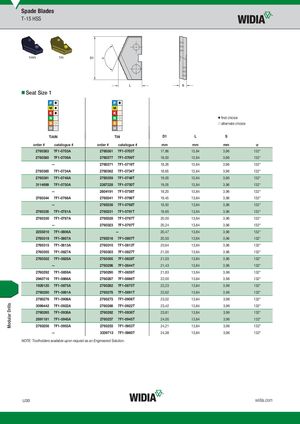

Общий каталог Widia 2017 - страница 1550
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
TiAlN TiN
Seat Size 1
| �first choice | |||||
| D1 | L | S �alternate choice | |||
| TiAlN | TiN | D1 | L | S | |
| order # catalogue # | order # catalogue # | mm | mm | mm | � |
| 2760383 7F1-0703A | 2760381 7F1-0703T | 17,86 | 13,84 | 3,96 | 132° |
| 2760380 7F1-0709A | 2760377 7F1-0709T | 18,00 | 13,84 | 3,96 | 132° |
| — | 2760371 7F1-0719T | 18,26 | 13,84 | 3,96 | 132° |
| 2760365 7F1-0734A | 2760362 7F1-0734T | 18,65 | 13,84 | 3,96 | 132° |
| 2760361 7F1-0748A | 2760359 7F1-0748T | 19,00 | 13,84 | 3,96 | 132° |
| 3114699 7F1-0750A | 2387228 7F1-0750T | 19,05 | 13,84 | 3,96 | 132° |
| — | 2604191 7F1-0756T | 19,20 | 13,84 | 3,96 | 132° |
| 2760344 7F1-0766A | 2760341 7F1-0766T | 19,45 | 13,84 | 3,96 | 132° |
| — | 2760338 7F1-0768T | 19,50 | 13,84 | 3,96 | 132° |
| 2760335 7F1-0781A | 2760331 7F1-0781T | 19,85 | 13,84 | 3,96 | 132° |
| 2760330 7F1-0787A | 2760328 7F1-0787T | 20,00 | 13,84 | 3,96 | 132° |
| — | 2760323 7F1-0797T | 20,24 | 13,84 | 3,96 | 132° |
| 2255810 7F1-0806A | — | 20,47 | 13,84 | 3,96 | 132° |
| 2760319 7F1-0807A | 2760316 7F1-0807T | 20,50 | 13,84 | 3,96 | 132° |
| 2760315 7F1-0813A | 2760310 7F1-0813T | 20,64 | 13,84 | 3,96 | 132° |
| 2760305 7F1-0827A | 2760303 7F1-0827T | 21,00 | 13,84 | 3,96 | 132° |
| 2760302 7F1-0828A | 2760300 7F1-0828T | 21,03 | 13,84 | 3,96 | 132° |
| — | 2760296 7F1-0844T | 21,43 | 13,84 | 3,96 | 132° |
| 2760292 7F1-0859A | 2760290 7F1-0859T | 21,83 | 13,84 | 3,96 | 132° |
| 2940716 7F1-0866A | 2760287 7F1-0866T | 22,00 | 13,84 | 3,96 | 132° |
| 1926120 7F1-0875A | 2760282 7F1-0875T | 22,23 | 13,84 | 3,96 | 132° |
| 2760280 7F1-0891A | 2760278 7F1-0891T | 22,62 | 13,84 | 3,96 | 132° |
| 2760276 7F1-0906A | 2760273 7F1-0906T | 23,02 | 13,84 | 3,96 | 132° |
| 3099442 7F1-0922A | 2760268 7F1-0922T | 23,42 | 13,84 | 3,96 | 132° |
| 2760265 7F1-0938A | 2760262 7F1-0938T | 23,81 | 13,84 | 3,96 | 132° |
| 2891181 7F1-0945A | 2760257 7F1-0945T | 24,00 | 13,84 | 3,96 | 132° |
| 2760256 7F1-0953A | 2760253 7F1-0953T | 24,21 | 13,84 | 3,96 | 132° |
| — | 3339713 7F1-0960T | 24,38 | 13,84 | 3,96 | 132° |
