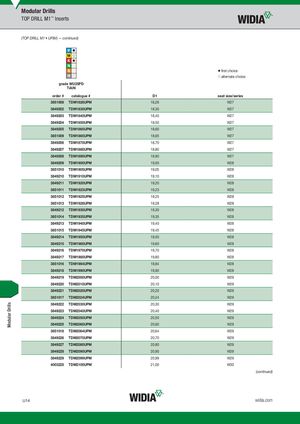

(TOP DRILL M1 • UP(M) — continued)
first choice alternate choice grade WU25PDK20FTiAlN TiAlN
| order # catalogue # | D1 | seat size/series |
| 3851008 TDM1826UPM | 18,26 | W27 |
| 3849202 TDM1830UPM | 18,30 | W27 |
| 3849203 TDM1840UPM | 18,40 | W27 |
| 3849204 TDM1850UPM | 18,50 | W27 |
| 3849205 TDM1860UPM | 18,60 | W27 |
| 3851009 TDM1865UPM | 18,65 | W27 |
| 3849206 TDM1870UPM | 18,70 | W27 |
| 3849207 TDM1880UPM | 18,80 | W27 |
| 3849208 TDM1890UPM | 18,90 | W27 |
| 3849209 TDM1900UPM | 19,00 | W28 |
| 3851010 TDM1905UPM | 19,05 | W28 |
| 3849210 TDM1910UPM | 19,10 | W28 |
| 3849211 TDM1920UPM | 19,20 | W28 |
| 3851011 TDM1923UPM | 19,23 | W28 |
| 3851012 TDM1925UPM | 19,25 | W28 |
| 3851013 TDM1928UPM | 19,28 | W28 |
| 3849212 TDM1930UPM | 19,30 | W28 |
| 3851014 TDM1935UPM | 19,35 | W28 |
| 3849213 TDM1940UPM | 19,40 | W28 |
| 3851015 TDM1945UPM | 19,45 | W28 |
| 3849214 TDM1950UPM | 19,50 | W28 |
| 3849215 TDM1960UPM | 19,60 | W28 |
| 3849216 TDM1970UPM | 19,70 | W28 |
| 3849217 TDM1980UPM | 19,80 | W28 |
| 3851016 TDM1984UPM | 19,84 | W28 |
| 3849218 TDM1990UPM | 19,90 | W28 |
| 3849219 TDM2000UPM | 20,00 | W29 |
| 3849220 TDM2010UPM | 20,10 | W29 |
| 3849221 TDM2020UPM | 20,20 | W29 |
| 3851017 TDM2024UPM | 20,24 | W29 |
| 3849222 TDM2030UPM | 20,30 | W29 |
| 3849223 TDM2040UPM | 20,40 | W29 |
| 3849224 TDM2050UPM | 20,50 | W29 |
| 3849225 TDM2060UPM | 20,60 | W29 |
| 3851018 TDM2064UPM | 20,64 | W29 |
| 3849226 TDM2070UPM | 20,70 | W29 |
| 3849227 TDM2080UPM | 20,80 | W29 |
| 3849228 TDM2090UPM | 20,90 | W29 |
| 3849229 TDM2099UPM | 20,99 | W29 |
| 4003225 TDM2100UPM | 21,00 | W30 |
(continued)
