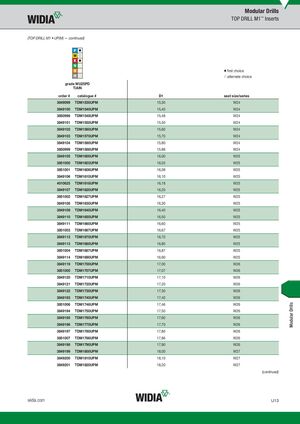

(TOP DRILL M1 • UP(M) — continued)
first choice
| K grad | 20FTiAlN e WU25PD TiAlN | ||
| order # | catalogue # | D1 | seat size/series |
| 3849099 | TDM1530UPM | 15,30 | W24 |
| 3849100 | TDM1540UPM | 15,40 | W24 |
| 3850998 | TDM1548UPM | 15,48 | W24 |
| 3849101 | TDM1550UPM | 15,50 | W24 |
| 3849102 | TDM1560UPM | 15,60 | W24 |
| 3849103 | TDM1570UPM | 15,70 | W24 |
| 3849104 | TDM1580UPM | 15,80 | W24 |
| 3850999 | TDM1588UPM | 15,88 | W24 |
| 3849105 | TDM1600UPM | 16,00 | W25 |
| 3851000 | TDM1603UPM | 16,03 | W25 |
| 3851001 | TDM1608UPM | 16,08 | W25 |
| 3849106 | TDM1610UPM | 16,10 | W25 |
| 4010625 | TDM1618UPM | 16,18 | W25 |
| 3849107 | TDM1620UPM | 16,20 | W25 |
| 3851002 | TDM1627UPM | 16,27 | W25 |
| 3849108 | TDM1630UPM | 16,30 | W25 |
| 3849109 | TDM1640UPM | 16,40 | W25 |
| 3849110 | TDM1650UPM | 16,50 | W25 |
| 3849111 | TDM1660UPM | 16,60 | W25 |
| 3851003 | TDM1667UPM | 16,67 | W25 |
| 3849112 | TDM1670UPM | 16,70 | W25 |
| 3849113 | TDM1680UPM | 16,80 | W25 |
| 3851004 | TDM1687UPM | 16,87 | W25 |
| 3849114 | TDM1690UPM | 16,90 | W25 |
| 3849119 | TDM1700UPM | 17,00 | W26 |
| 3851005 | TDM1707UPM | 17,07 | W26 |
| 3849120 | TDM1710UPM | 17,10 | W26 |
| 3849121 | TDM1720UPM | 17,20 | W26 |
| 3849122 | TDM1730UPM | 17,30 | W26 |
| 3849193 | TDM1740UPM | 17,40 | W26 |
| 3851006 | TDM1746UPM | 17,46 | W26 |
| 3849194 | TDM1750UPM | 17,50 | W26 |
| 3849195 | TDM1760UPM | 17,60 | W26 |
| 3849196 | TDM1770UPM | 17,70 | W26 |
| 3849197 | TDM1780UPM | 17,80 | W26 |
| 3851007 | TDM1786UPM | 17,86 | W26 |
| 3849198 | TDM1790UPM | 17,90 | W26 |
| 3849199 | TDM1800UPM | 18,00 | W27 |
| 3849200 | TDM1810UPM | 18,10 | W27 |
| 3849201 | TDM1820UPM | 18,20 | W27 |
(continued)
