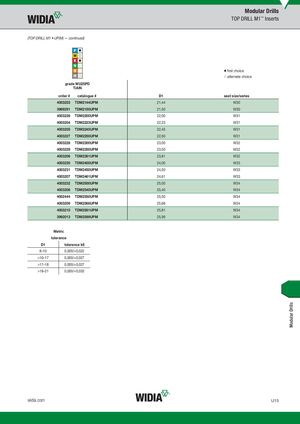

(TOP DRILL M1 • UP(M) — continued)
| �first choice | |||
| K2 grad | 0FTiAlN e WU25PD TiAlN | �alternate choice | |
| order # | catalogue # | D1 | seat size/series |
| 4003203 | TDM2144UPM | 21,44 | W30 |
| 3969291 | TDM2150UPM | 21,50 | W30 |
| 4003226 | TDM2200UPM | 22,00 | W31 |
| 4003204 | TDM2223UPM | 22,23 | W31 |
| 4003205 | TDM2245UPM | 22,45 | W31 |
| 4003227 | TDM2250UPM | 22,50 | W31 |
| 4003228 | TDM2300UPM | 23,00 | W32 |
| 4003229 | TDM2350UPM | 23,50 | W32 |
| 4003206 | TDM2381UPM | 23,81 | W32 |
| 4003230 | TDM2400UPM | 24,00 | W33 |
| 4003231 | TDM2450UPM | 24,50 | W33 |
| 4003207 | TDM2461UPM | 24,61 | W33 |
| 4003232 | TDM2500UPM | 25,00 | W34 |
| 4003208 | TDM2540UPM | 25,40 | W34 |
| 4002444 | TDM2550UPM | 25,50 | W34 |
| 4003209 | TDM2568UPM | 25,68 | W34 |
| 4003210 | TDM2581UPM | 25,81 | W34 |
| 3992013 | TDM2599UPM | 25,99 | W34 |
| Metric | |||
| tolerance | |||
| D1 tolera | nce k8 | ||
| 8–10 0,000 | /+0,022 | ||
| >10–17 0,000 | /+0,027 | ||
| >17–18 0,000 | /+0,027 | ||
| >18–21 0,000 | /+0,033 |
