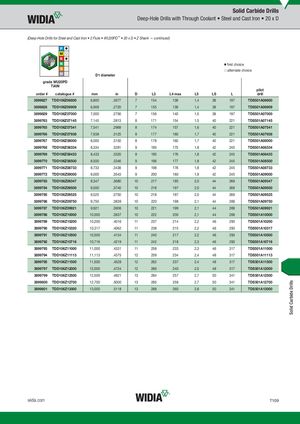

(Deep-Hole Drills for Steel and Cast Iron • 2 Flute • WU20PD™ • 20 x D • Z Shank — continued)
| D1 dia | meter | �first choi �alternate | i ce choice | ||||||
| WU20PD grade WU20PD TiAlN | ilot | ||||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L | p drill |
| 3899827 TDD106Z06800 | 6,800 | .2677 | 7 | 154 | 139 | 1,4 | 38 | 197 | TDS501A06800 |
| 3899828 TDD106Z06909 | 6,909 | .2720 | 7 | 155 | 139 | 1,4 | 38 | 197 | TDS501A06909 |
| 3899829 TDD106Z07000 | 7,000 | .2756 | 7 | 156 | 140 | 1,5 | 38 | 197 | TDS501A07000 |
| 3899763 TDD106Z07145 | 7,145 | .2813 | 8 | 171 | 154 | 1,5 | 40 | 221 | TDS501A07145 |
| 3899765 TDD106Z07541 | 7,541 | .2969 | 8 | 174 | 157 | 1,6 | 40 | 221 | TDS501A07541 |
| 3899766 TDD106Z07938 | 7,938 | .3125 | 8 | 177 | 160 | 1,7 | 40 | 221 | TDS501A07938 |
| 3899767 TDD106Z08000 | 8,000 | .3150 | 8 | 178 | 160 | 1,7 | 40 | 221 | TDS501A08000 |
| 3899768 TDD106Z08334 | 8,334 | .3281 | 9 | 195 | 175 | 1,8 | 42 | 245 | TDS501A08334 |
| 3899769 TDD106Z08433 | 8,433 | .3320 | 9 | 195 | 176 | 1,8 | 42 | 245 | TDS501A08433 |
| 3899770 TDD106Z08500 | 8,500 | .3346 | 9 | 196 | 177 | 1,8 | 42 | 245 | TDS501A08500 |
| 3899771 TDD106Z08733 | 8,733 | .3438 | 9 | 198 | 178 | 1,8 | 42 | 245 | TDS501A08733 |
| 3899772 TDD106Z09000 | 9,000 | .3543 | 9 | 200 | 180 | 1,9 | 42 | 245 | TDS501A09000 |
| 3899783 TDD106Z09347 | 9,347 | .3680 | 10 | 217 | 195 | 2,0 | 44 | 269 | TDS501A09347 |
| 3899784 TDD106Z09500 | 9,500 | .3740 | 10 | 218 | 197 | 2,0 | 44 | 269 | TDS501A09500 |
| 3899785 TDD106Z09525 | 9,525 | .3750 | 10 | 218 | 197 | 2,0 | 44 | 269 | TDS501A09525 |
| 3899786 TDD106Z09750 | 9,750 | .3839 | 10 | 220 | 198 | 2,1 | 44 | 269 | TDS501A09750 |
| 3899787 TDD106Z09921 | 9,921 | .3906 | 10 | 221 | 199 | 2,1 | 44 | 269 | TDS501A09921 |
| 3899788 TDD106Z10000 | 10,000 | .3937 | 10 | 222 | 200 | 2,1 | 44 | 269 | TDS501A10000 |
| 3899789 TDD106Z10200 | 10,200 | .4016 | 11 | 237 | 214 | 2,2 | 46 | 293 | TDS501A10200 |
| 3899790 TDD106Z10320 | 10,317 | .4062 | 11 | 238 | 215 | 2,2 | 46 | 293 | TDS501A10317 |
| 3899791 TDD106Z10500 | 10,500 | .4134 | 11 | 240 | 217 | 2,2 | 46 | 293 | TDS501A10500 |
| 3899792 TDD106Z10716 | 10,716 | .4219 | 11 | 242 | 218 | 2,3 | 46 | 293 | TDS501A10716 |
| 3899793 TDD106Z11000 | 11,000 | .4331 | 11 | 258 | 233 | 2,3 | 46 | 317 | TDS501A11000 |
| 3899794 TDD106Z11113 | 11,113 | .4375 | 12 | 259 | 234 | 2,4 | 48 | 317 | TDS501A11113 |
| 3899795 TDD106Z11500 | 11,500 | .4528 | 12 | 262 | 237 | 2,4 | 48 | 317 | TDS501A11500 |
| 3899797 TDD106Z12000 | 12,000 | .4724 | 12 | 266 | 240 | 2,5 | 48 | 317 | TDS501A12000 |
| 3899799 TDD106Z12500 | 12,500 | .4921 | 13 | 284 | 257 | 2,7 | 50 | 341 | TDS501A12500 |
| 3899800 TDD106Z12700 | 12,700 | .5000 | 13 | 285 | 258 | 2,7 | 50 | 341 | TDS501A12700 |
| 3899801 TDD106Z13000 | 13,000 | .5118 | 13 | 288 | 260 | 2,8 | 50 | 341 | TDS501A13000 |
