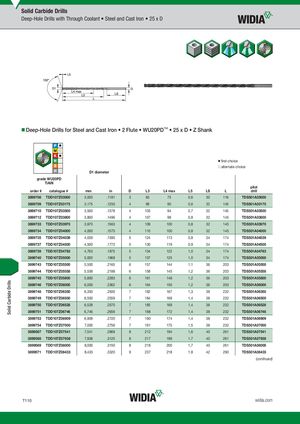

Deep-Hole Drills for Steel and Cast Iron • 2 Flute • WU20PD™ • 25 x D • Z Shank
| �first choi | i ce | ||||||||
| �alternate | choice | ||||||||
| D1 dia | meter | ||||||||
| WU20PD grade WU20PD TiAlN | |||||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L | pilot drill |
| 3899708 TDD107Z03000 | 3,000 | .1181 | 3 | 83 | 75 | 0,6 | 30 | 116 | TDS501A03000 |
| 3899709 TDD107Z03175 | 3,175 | .1250 | 4 | 99 | 90 | 0,6 | 32 | 145 | TDS501A03175 |
| 3899710 TDD107Z03500 | 3,500 | .1378 | 4 | 103 | 94 | 0,7 | 32 | 145 | TDS501A03500 |
| 3899712 TDD107Z03800 | 3,800 | .1496 | 4 | 107 | 98 | 0,8 | 32 | 145 | TDS501A03800 |
| 3899733 TDD107Z03970 | 3,970 | .1563 | 4 | 109 | 100 | 0,8 | 32 | 145 | TDS501A03970 |
| 3899734 TDD107Z04000 | 4,000 | .1575 | 4 | 110 | 100 | 0,8 | 32 | 145 | TDS501A04000 |
| 3899735 TDD107Z04039 | 4,039 | .1590 | 5 | 124 | 113 | 0,8 | 34 | 174 | TDS501A04039 |
| 3899737 TDD107Z04500 | 4,500 | .1772 | 5 | 130 | 119 | 0,9 | 34 | 174 | TDS501A04500 |
| 3899739 TDD107Z04763 | 4,763 | .1875 | 5 | 134 | 122 | 1,0 | 34 | 174 | TDS501A04763 |
| 3899740 TDD107Z05000 | 5,000 | .1969 | 5 | 137 | 125 | 1,0 | 34 | 174 | TDS501A05000 |
| 3899743 TDD107Z05500 | 5,500 | .2165 | 6 | 157 | 144 | 1,1 | 36 | 203 | TDS501A05500 |
| 3899744 TDD107Z05558 | 5,558 | .2188 | 6 | 158 | 145 | 1,2 | 36 | 203 | TDS501A05558 |
| 3899745 TDD107Z05800 | 5,800 | .2283 | 6 | 161 | 148 | 1,2 | 36 | 203 | TDS501A05800 |
| 3899746 TDD107Z06000 | 6,000 | .2362 | 6 | 164 | 150 | 1,2 | 36 | 203 | TDS501A06000 |
| 3899748 TDD107Z06350 | 6,350 | .2500 | 7 | 182 | 167 | 1,3 | 38 | 232 | TDS501A06350 |
| 3899749 TDD107Z06500 | 6,500 | .2559 | 7 | 184 | 169 | 1,4 | 38 | 232 | TDS501A06500 |
| 3899750 TDD107Z06528 | 6,528 | .2570 | 7 | 185 | 169 | 1,4 | 38 | 232 | TDS501A06528 |
| 3899751 TDD107Z06746 | 6,746 | .2656 | 7 | 188 | 172 | 1,4 | 38 | 232 | TDS501A06746 |
| 3899753 TDD107Z06909 | 6,909 | .2720 | 7 | 190 | 174 | 1,4 | 38 | 232 | TDS501A06909 |
| 3899754 TDD107Z07000 | 7,000 | .2756 | 7 | 191 | 175 | 1,5 | 38 | 232 | TDS501A07000 |
| 3899567 TDD107Z07541 | 7,541 | .2969 | 8 | 212 | 194 | 1,6 | 40 | 261 | TDS501A07541 |
| 3899568 TDD107Z07938 | 7,938 | .3125 | 8 | 217 | 199 | 1,7 | 40 | 261 | TDS501A07938 |
| 3899569 TDD107Z08000 | 8,000 | .3150 | 8 | 218 | 200 | 1,7 | 40 | 261 | TDS501A08000 |
| 3899571 TDD107Z08433 | 8,433 | .3320 | 9 | 237 | 218 | 1,8 | 42 | 290 | TDS501A08433 |
