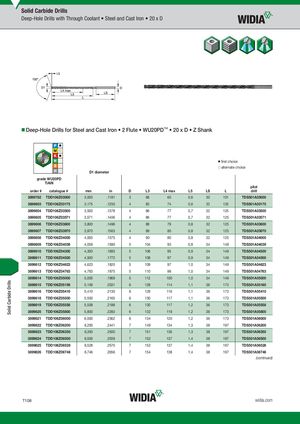

Deep-Hole Drills for Steel and Cast Iron • 2 Flute • WU20PD™ • 20 x D • Z Shank
| �first choi | i ce | ||||||||
| �alternate | choice | ||||||||
| D1 dia | meter | ||||||||
| WU20PD grade WU20PD TiAlN | ilt | ||||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L | po drill |
| 3899782 TDD106Z03000 | 3,000 | .1181 | 3 | 68 | 60 | 0,6 | 30 | 101 | TDS501A03000 |
| 3899803 TDD106Z03175 | 3,175 | .1250 | 4 | 83 | 74 | 0,6 | 32 | 125 | TDS501A03175 |
| 3899804 TDD106Z03500 | 3,500 | .1378 | 4 | 86 | 77 | 0,7 | 32 | 125 | TDS501A03500 |
| 3899805 TDD106Z03571 | 3,571 | .1406 | 4 | 86 | 77 | 0,7 | 32 | 125 | TDS501A03571 |
| 3899806 TDD106Z03800 | 3,800 | .1496 | 4 | 88 | 79 | 0,8 | 32 | 125 | TDS501A03800 |
| 3899807 TDD106Z03970 | 3,970 | .1563 | 4 | 89 | 80 | 0,8 | 32 | 125 | TDS501A03970 |
| 3899808 TDD106Z04000 | 4,000 | .1575 | 4 | 90 | 80 | 0,8 | 32 | 125 | TDS501A04000 |
| 3899809 TDD106Z04039 | 4,039 | .1590 | 5 | 104 | 93 | 0,8 | 34 | 149 | TDS501A04039 |
| 3899810 TDD106Z04300 | 4,300 | .1693 | 5 | 106 | 95 | 0,9 | 34 | 149 | TDS501A04300 |
| 3899811 TDD106Z04500 | 4,500 | .1772 | 5 | 108 | 97 | 0,9 | 34 | 149 | TDS501A04500 |
| 3899812 TDD106Z04623 | 4,623 | .1820 | 5 | 109 | 97 | 1,0 | 34 | 149 | TDS501A04623 |
| 3899813 TDD106Z04763 | 4,763 | .1875 | 5 | 110 | 98 | 1,0 | 34 | 149 | TDS501A04763 |
| 3899814 TDD106Z05000 | 5,000 | .1969 | 5 | 112 | 100 | 1,0 | 34 | 149 | TDS501A05000 |
| 3899815 TDD106Z05159 | 5,159 | .2031 | 6 | 128 | 114 | 1,1 | 36 | 173 | TDS501A05160 |
| 3899816 TDD106Z05410 | 5,410 | .2130 | 6 | 129 | 116 | 1,1 | 36 | 173 | TDS501A05410 |
| 3899818 TDD106Z05500 | 5,500 | .2165 | 6 | 130 | 117 | 1,1 | 36 | 173 | TDS501A05500 |
| 3899819 TDD106Z05558 | 5,558 | .2188 | 6 | 130 | 117 | 1,2 | 36 | 173 | TDS501A05558 |
| 3899820 TDD106Z05800 | 5,800 | .2283 | 6 | 132 | 119 | 1,2 | 36 | 173 | TDS501A05800 |
| 3899821 TDD106Z06000 | 6,000 | .2362 | 6 | 134 | 120 | 1,2 | 36 | 173 | TDS501A06000 |
| 3899822 TDD106Z06200 | 6,200 | .2441 | 7 | 149 | 134 | 1,3 | 38 | 197 | TDS501A06200 |
| 3899823 TDD106Z06350 | 6,350 | .2500 | 7 | 151 | 136 | 1,3 | 38 | 197 | TDS501A06350 |
| 3899824 TDD106Z06500 | 6,500 | .2559 | 7 | 152 | 137 | 1,4 | 38 | 197 | TDS501A06500 |
| 3899825 TDD106Z06528 | 6,528 | .2570 | 7 | 152 | 137 | 1,4 | 38 | 197 | TDS501A06528 |
| 3899826 TDD106Z06746 | 6,746 | .2656 | 7 | 154 | 138 | 1,4 | 38 | 197 | TDS501A06746 |
