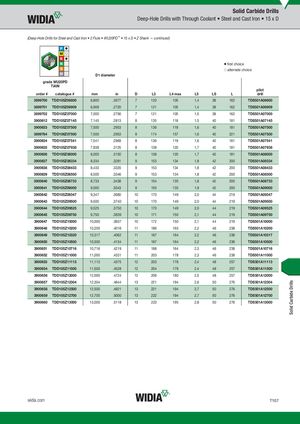

(Deep-Hole Drills for Steel and Cast Iron • 2 Flute • WU20PD™ • 15 x D • Z Shank — continued)
| �first choi | i ce | ||||||||
| D1 dia | meter | �alternate | choice | ||||||
| WU20PD grade WU20PD TiAlN | |||||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L | pilot drill |
| 3899700 TDD105Z06800 | 6,800 | .2677 | 7 | 120 | 105 | 1,4 | 38 | 162 | TDS501A06800 |
| 3899701 TDD105Z06909 | 6,909 | .2720 | 7 | 121 | 105 | 1,4 | 38 | 162 | TDS501A06909 |
| 3899702 TDD105Z07000 | 7,000 | .2756 | 7 | 121 | 105 | 1,5 | 38 | 162 | TDS501A07000 |
| 3900612 TDD105Z07145 | 7,145 | .2813 | 8 | 135 | 118 | 1,5 | 40 | 181 | TDS501A07145 |
| 3900633 TDD105Z07500 | 7,500 | .2953 | 8 | 136 | 119 | 1,6 | 40 | 181 | TDS501A07500 |
| 3899764 TDD106Z07500 | 7,500 | .2953 | 8 | 174 | 157 | 1,6 | 40 | 221 | TDS501A07500 |
| 3900634 TDD105Z07541 | 7,541 | .2969 | 8 | 136 | 119 | 1,6 | 40 | 181 | TDS501A07541 |
| 3900635 TDD105Z07938 | 7,938 | .3125 | 8 | 138 | 120 | 1,7 | 40 | 181 | TDS501A07938 |
| 3900636 TDD105Z08000 | 8,000 | .3150 | 8 | 138 | 120 | 1,7 | 40 | 181 | TDS501A08000 |
| 3900637 TDD105Z08334 | 8,334 | .3281 | 9 | 153 | 134 | 1,8 | 42 | 200 | TDS501A08334 |
| 3900638 TDD105Z08433 | 8,433 | .3320 | 9 | 153 | 134 | 1,8 | 42 | 200 | TDS501A08433 |
| 3900639 TDD105Z08500 | 8,500 | .3346 | 9 | 153 | 134 | 1,8 | 42 | 200 | TDS501A08500 |
| 3900640 TDD105Z08733 | 8,733 | .3438 | 9 | 154 | 135 | 1,8 | 42 | 200 | TDS501A08733 |
| 3900641 TDD105Z09000 | 9,000 | .3543 | 9 | 155 | 135 | 1,9 | 42 | 200 | TDS501A09000 |
| 3900642 TDD105Z09347 | 9,347 | .3680 | 10 | 170 | 149 | 2,0 | 44 | 219 | TDS501A09347 |
| 3900643 TDD105Z09500 | 9,500 | .3740 | 10 | 170 | 149 | 2,0 | 44 | 219 | TDS501A09500 |
| 3900644 TDD105Z09525 | 9,525 | .3750 | 10 | 170 | 149 | 2,0 | 44 | 219 | TDS501A09525 |
| 3900645 TDD105Z09750 | 9,750 | .3839 | 10 | 171 | 150 | 2,1 | 44 | 219 | TDS501A09750 |
| 3900647 TDD105Z10000 | 10,000 | .3937 | 10 | 172 | 150 | 2,1 | 44 | 219 | TDS501A10000 |
| 3900648 TDD105Z10200 | 10,200 | .4016 | 11 | 186 | 163 | 2,2 | 46 | 238 | TDS501A10200 |
| 3900649 TDD105Z10320 | 10,317 | .4062 | 11 | 187 | 164 | 2,2 | 46 | 238 | TDS501A10317 |
| 3900650 TDD105Z10500 | 10,500 | .4134 | 11 | 187 | 164 | 2,2 | 46 | 238 | TDS501A10500 |
| 3900651 TDD105Z10716 | 10,716 | .4219 | 11 | 188 | 164 | 2,3 | 46 | 238 | TDS501A10716 |
| 3900652 TDD105Z11000 | 11,000 | .4331 | 11 | 203 | 178 | 2,3 | 46 | 238 | TDS501A11000 |
| 3900653 TDD105Z11113 | 11,113 | .4375 | 12 | 203 | 178 | 2,4 | 48 | 257 | TDS501A11113 |
| 3900654 TDD105Z11500 | 11,500 | .4528 | 12 | 204 | 179 | 2,4 | 48 | 257 | TDS501A11500 |
| 3900656 TDD105Z12000 | 12,000 | .4724 | 12 | 206 | 180 | 2,5 | 48 | 257 | TDS501A12000 |
| 3900657 TDD105Z12304 | 12,304 | .4844 | 13 | 221 | 194 | 2,6 | 50 | 276 | TDS501A12304 |
| 3900658 TDD105Z12500 | 12,500 | .4921 | 13 | 221 | 194 | 2,7 | 50 | 276 | TDS501A12500 |
| 3900659 TDD105Z12700 | 12,700 | .5000 | 13 | 222 | 194 | 2,7 | 50 | 276 | TDS501A12700 |
| 3900660 TDD105Z13000 | 13,000 | .5118 | 13 | 223 | 195 | 2,8 | 50 | 276 | TDS501A13000 |
