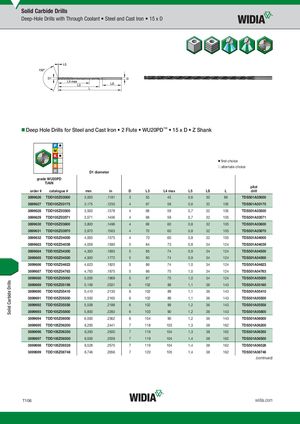

Deep Hole Drills for Steel and Cast Iron • 2 Flute • WU20PD™ • 15 x D • Z Shank
| �first choi | i ce | ||||||||
| �alternate | choice | ||||||||
| D1 dia | meter | ||||||||
| WU20PD grade WU20PD TiAlN | il | ||||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L | pot drill |
| 3899626 TDD105Z03000 | 3,000 | .1181 | 3 | 53 | 45 | 0,6 | 30 | 86 | TDS501A03000 |
| 3899627 TDD105Z03175 | 3,175 | .1250 | 4 | 67 | 58 | 0,6 | 32 | 105 | TDS501A03175 |
| 3899628 TDD105Z03500 | 3,500 | .1378 | 4 | 68 | 59 | 0,7 | 32 | 105 | TDS501A03500 |
| 3899629 TDD105Z03571 | 3,571 | .1406 | 4 | 68 | 59 | 0,7 | 32 | 105 | TDS501A03571 |
| 3899630 TDD105Z03800 | 3,800 | .1496 | 4 | 69 | 60 | 0,8 | 32 | 105 | TDS501A03800 |
| 3899631 TDD105Z03970 | 3,970 | .1563 | 4 | 70 | 60 | 0,8 | 32 | 105 | TDS501A03970 |
| 3899632 TDD105Z04000 | 4,000 | .1575 | 4 | 70 | 60 | 0,8 | 32 | 105 | TDS501A04000 |
| 3899683 TDD105Z04039 | 4,039 | .1590 | 5 | 84 | 73 | 0,8 | 34 | 124 | TDS501A04039 |
| 3899684 TDD105Z04300 | 4,300 | .1693 | 5 | 85 | 74 | 0,9 | 34 | 124 | TDS501A04300 |
| 3899685 TDD105Z04500 | 4,500 | .1772 | 5 | 85 | 74 | 0,9 | 34 | 124 | TDS501A04500 |
| 3899686 TDD105Z04623 | 4,623 | .1820 | 5 | 86 | 74 | 1,0 | 34 | 124 | TDS501A04623 |
| 3899687 TDD105Z04763 | 4,763 | .1875 | 5 | 86 | 75 | 1,0 | 34 | 124 | TDS501A04763 |
| 3899688 TDD105Z05000 | 5,000 | .1969 | 5 | 87 | 75 | 1,0 | 34 | 124 | TDS501A05000 |
| 3899689 TDD105Z05159 | 5,159 | .2031 | 6 | 102 | 88 | 1,1 | 36 | 143 | TDS501A05160 |
| 3899690 TDD105Z05410 | 5,410 | .2130 | 6 | 102 | 89 | 1,1 | 36 | 143 | TDS501A05410 |
| 3899691 TDD105Z05500 | 5,500 | .2165 | 6 | 102 | 89 | 1,1 | 36 | 143 | TDS501A05500 |
| 3899692 TDD105Z05558 | 5,558 | .2188 | 6 | 102 | 89 | 1,2 | 36 | 143 | TDS501A05558 |
| 3899693 TDD105Z05800 | 5,800 | .2283 | 6 | 103 | 90 | 1,2 | 36 | 143 | TDS501A05800 |
| 3899694 TDD105Z06000 | 6,000 | .2362 | 6 | 104 | 90 | 1,2 | 36 | 143 | TDS501A06000 |
| 3899695 TDD105Z06200 | 6,200 | .2441 | 7 | 118 | 103 | 1,3 | 38 | 162 | TDS501A06200 |
| 3899696 TDD105Z06350 | 6,350 | .2500 | 7 | 119 | 104 | 1,3 | 38 | 162 | TDS501A06350 |
| 3899697 TDD105Z06500 | 6,500 | .2559 | 7 | 119 | 104 | 1,4 | 38 | 162 | TDS501A06500 |
| 3899698 TDD105Z06528 | 6,528 | .2570 | 7 | 119 | 104 | 1,4 | 38 | 162 | TDS501A06528 |
| 3899699 TDD105Z06746 | 6,746 | .2656 | 7 | 120 | 105 | 1,4 | 38 | 162 | TDS501A06746 |
