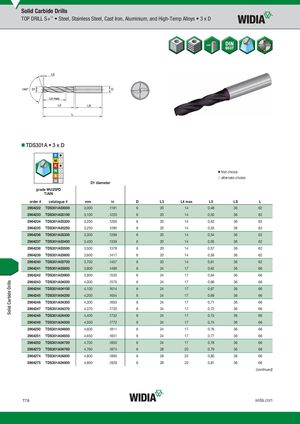

TDS301A • 3 x D
first choice alternate choice D1 diameter
| WU25PD grade WU25PD TiAlN | D1 dia | meter | ||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L |
| 2964222 TDS301A03000 | 3,000 | .1181 | 6 | 20 | 14 | 0,48 | 36 | 62 |
| 2964233 TDS301A03100 | 3,100 | .1220 | 6 | 20 | 14 | 0,50 | 36 | 62 |
| 2964234 TDS301A03200 | 3,200 | .1260 | 6 | 20 | 14 | 0,52 | 36 | 62 |
| 2964235 TDS301A03250 | 3,250 | .1280 | 6 | 20 | 14 | 0,53 | 36 | 62 |
| 2964236 TDS301A03300 | 3,300 | .1299 | 6 | 20 | 14 | 0,54 | 36 | 62 |
| 2964237 TDS301A03400 | 3,400 | .1339 | 6 | 20 | 14 | 0,55 | 36 | 62 |
| 2964238 TDS301A03500 | 3,500 | .1378 | 6 | 20 | 14 | 0,57 | 36 | 62 |
| 2964239 TDS301A03600 | 3,600 | .1417 | 6 | 20 | 14 | 0,59 | 36 | 62 |
| 2964240 TDS301A03700 | 3,700 | .1457 | 6 | 20 | 14 | 0,61 | 36 | 62 |
| 2964241 TDS301A03800 | 3,800 | .1496 | 6 | 24 | 17 | 0,62 | 36 | 66 |
| 2964242 TDS301A03900 | 3,900 | .1535 | 6 | 24 | 17 | 0,64 | 36 | 66 |
| 2964243 TDS301A04000 | 4,000 | .1575 | 6 | 24 | 17 | 0,66 | 36 | 66 |
| 2964244 TDS301A04100 | 4,100 | .1614 | 6 | 24 | 17 | 0,67 | 36 | 66 |
| 2964245 TDS301A04200 | 4,200 | .1654 | 6 | 24 | 17 | 0,69 | 36 | 66 |
| 2964246 TDS301A04300 | 4,300 | .1693 | 6 | 24 | 17 | 0,71 | 36 | 66 |
| 2964247 TDS301A04370 | 4,370 | .1720 | 6 | 24 | 17 | 0,72 | 36 | 66 |
| 2964248 TDS301A04400 | 4,400 | .1732 | 6 | 24 | 17 | 0,73 | 36 | 66 |
| 2964249 TDS301A04500 | 4,500 | .1772 | 6 | 24 | 17 | 0,74 | 36 | 66 |
| 2964250 TDS301A04600 | 4,600 | .1811 | 6 | 24 | 17 | 0,76 | 36 | 66 |
| 2964251 TDS301A04650 | 4,650 | .1831 | 6 | 24 | 17 | 0,77 | 36 | 66 |
| 2964252 TDS301A04700 | 4,700 | .1850 | 6 | 24 | 17 | 0,78 | 36 | 66 |
| 2964273 TDS301A04760 | 4,760 | .1874 | 6 | 28 | 20 | 0,79 | 36 | 66 |
| 2964274 TDS301A04800 | 4,800 | .1890 | 6 | 28 | 20 | 0,80 | 36 | 66 |
| 2964275 TDS301A04900 | 4,900 | .1929 | 6 | 28 | 20 | 0,81 | 36 | 66 |
