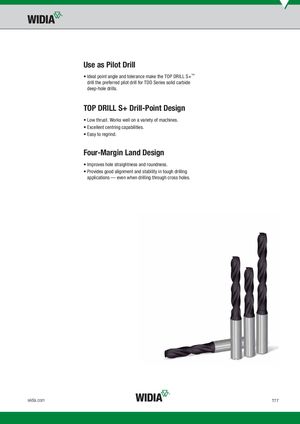

Use as Pilot Drill
- Ideal point angle and tolerance make the TOP DRILL S+™ drill the preferred pilot drill for TDD Series solid carbide deep-hole drills.
TOP DRILL S+ Drill-Point Design
- Low thrust. Works well on a variety of machines.
- Excellent centring capabilities.
- Easy to regrind.
Four-Margin Land Design
- Improves hole straightness and roundness.
- Provides good alignment and stability in tough drilling applications — even when drilling through cross holes.
