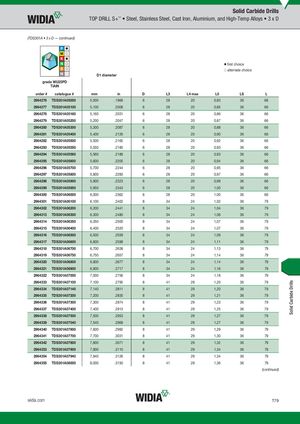

(TDS301A • 3 x D — continued)
first choice
| D1 dia | meter | |||||||
| WU25PD grade WU25PD TiAlN | ||||||||
| order # catalogue # | mm | in | D | L3 | L4 max | L5 | LS | L |
| 2964276 TDS301A05000 | 5,000 | .1969 | 6 | 28 | 20 | 0,83 | 36 | 66 |
| 2964277 TDS301A05100 | 5,100 | .2008 | 6 | 28 | 20 | 0,85 | 36 | 66 |
| 2964278 TDS301A05160 | 5,160 | .2031 | 6 | 28 | 20 | 0,86 | 36 | 66 |
| 2964279 TDS301A05200 | 5,200 | .2047 | 6 | 28 | 20 | 0,87 | 36 | 66 |
| 2964280 TDS301A05300 | 5,300 | .2087 | 6 | 28 | 20 | 0,88 | 36 | 66 |
| 2964281 TDS301A05400 | 5,400 | .2126 | 6 | 28 | 20 | 0,90 | 36 | 66 |
| 2964282 TDS301A05500 | 5,500 | .2165 | 6 | 28 | 20 | 0,92 | 36 | 66 |
| 2964293 TDS301A05550 | 5,550 | .2185 | 6 | 28 | 20 | 0,93 | 36 | 66 |
| 2964294 TDS301A05560 | 5,560 | .2189 | 6 | 28 | 20 | 0,93 | 36 | 66 |
| 2964295 TDS301A05600 | 5,600 | .2205 | 6 | 28 | 20 | 0,94 | 36 | 66 |
| 2964296 TDS301A05700 | 5,700 | .2244 | 6 | 28 | 20 | 0,95 | 36 | 66 |
| 2964297 TDS301A05800 | 5,800 | .2283 | 6 | 28 | 20 | 0,97 | 36 | 66 |
| 2964298 TDS301A05900 | 5,900 | .2323 | 6 | 28 | 20 | 0,99 | 36 | 66 |
| 2964299 TDS301A05950 | 5,950 | .2343 | 6 | 28 | 20 | 1,00 | 36 | 66 |
| 2964300 TDS301A06000 | 6,000 | .2362 | 6 | 28 | 20 | 1,00 | 36 | 66 |
| 2964301 TDS301A06100 | 6,100 | .2402 | 8 | 34 | 24 | 1,02 | 36 | 79 |
| 2964302 TDS301A06200 | 6,200 | .2441 | 8 | 34 | 24 | 1,04 | 36 | 79 |
| 2964313 TDS301A06300 | 6,300 | .2480 | 8 | 34 | 24 | 1,06 | 36 | 79 |
| 2964314 TDS301A06350 | 6,350 | .2500 | 8 | 34 | 24 | 1,07 | 36 | 79 |
| 2964315 TDS301A06400 | 6,400 | .2520 | 8 | 34 | 24 | 1,07 | 36 | 79 |
| 2964316 TDS301A06500 | 6,500 | .2559 | 8 | 34 | 24 | 1,09 | 36 | 79 |
| 2964317 TDS301A06600 | 6,600 | .2598 | 8 | 34 | 24 | 1,11 | 36 | 79 |
| 2964318 TDS301A06700 | 6,700 | .2638 | 8 | 34 | 24 | 1,13 | 36 | 79 |
| 2964319 TDS301A06750 | 6,750 | .2657 | 8 | 34 | 24 | 1,14 | 36 | 79 |
| 2964320 TDS301A06800 | 6,800 | .2677 | 8 | 34 | 24 | 1,14 | 36 | 79 |
| 2964321 TDS301A06900 | 6,900 | .2717 | 8 | 34 | 24 | 1,16 | 36 | 79 |
| 2964322 TDS301A07000 | 7,000 | .2756 | 8 | 34 | 24 | 1,18 | 36 | 79 |
| 2964333 TDS301A07100 | 7,100 | .2795 | 8 | 41 | 29 | 1,20 | 36 | 79 |
| 2964334 TDS301A07140 | 7,140 | .2811 | 8 | 41 | 29 | 1,20 | 36 | 79 |
| 2964335 TDS301A07200 | 7,200 | .2835 | 8 | 41 | 29 | 1,21 | 36 | 79 |
| 2964336 TDS301A07300 | 7,300 | .2874 | 8 | 41 | 29 | 1,23 | 36 | 79 |
| 2964337 TDS301A07400 | 7,400 | .2913 | 8 | 41 | 29 | 1,25 | 36 | 79 |
| 2964338 TDS301A07500 | 7,500 | .2953 | 8 | 41 | 29 | 1,27 | 36 | 79 |
| 2964339 TDS301A07540 | 7,540 | .2969 | 8 | 41 | 29 | 1,27 | 36 | 79 |
| 2964340 TDS301A07600 | 7,600 | .2992 | 8 | 41 | 29 | 1,29 | 36 | 79 |
| 2964341 TDS301A07700 | 7,700 | .3031 | 8 | 41 | 29 | 1,30 | 36 | 79 |
| 2964342 TDS301A07800 | 7,800 | .3071 | 8 | 41 | 29 | 1,32 | 36 | 79 |
| 2964353 TDS301A07900 | 7,900 | .3110 | 8 | 41 | 29 | 1,34 | 36 | 79 |
| 2964354 TDS301A07940 | 7,940 | .3126 | 8 | 41 | 29 | 1,34 | 36 | 79 |
| 2964355 TDS301A08000 | 8,000 | .3150 | 8 | 41 | 29 | 1,36 | 36 | 79 |
