(VDS201A • VDS401A • 3 x D — continued)

first choice alternate choice D1 diameter VDS201A • WU25PDgrade WU25PD VDS401A • WU25PDgrade WU25PD TiAlN TiAlN

order # catalogue #	order # catalogue #	mm	in	L4 max	L3	L5	L	LS	D
4144503 VDS201A16600	4140243 VDS401A16600	16,600	.6535	51	73	2,9	123	48	18
4144504 VDS201A16670	4140244 VDS401A16670	16,670	.6563	51	73	2,9	123	48	18
4144505 VDS201A16700	4140245 VDS401A16700	16,700	.6575	51	73	2,9	123	48	18
4144506 VDS201A16800	4140246 VDS401A16800	16,800	.6614	51	73	2,9	123	48	18
4144507 VDS201A16900	4140247 VDS401A16900	16,900	.6654	51	73	2,9	123	48	18
4144508 VDS201A17000	4140248 VDS401A17000	17,000	.6693	51	73	2,9	123	48	18
4144509 VDS201A17100	4140249 VDS401A17100	17,100	.6732	51	73	3,0	123	48	18
4144510 VDS201A17200	4140250 VDS401A17200	17,200	.6772	51	73	3,0	123	48	18
4144511 VDS201A17300	4140251 VDS401A17300	17,300	.6811	51	73	3,0	123	48	18
4144512 VDS201A17400	4140252 VDS401A17400	17,400	.6850	51	73	3,0	123	48	18
4144513 VDS201A17463	4140253 VDS401A17463	17,463	.6875	51	73	3,0	123	48	18
4144514 VDS201A17500	4140254 VDS401A17500	17,500	.6890	51	73	3,0	123	48	18
4144515 VDS201A17600	4140255 VDS401A17600	17,600	.6929	51	73	3,1	123	48	18
4144516 VDS201A17700	4140256 VDS401A17700	17,700	.6969	51	73	3,1	123	48	18
4144517 VDS201A17800	4140257 VDS401A17800	17,800	.7008	51	73	3,1	123	48	18
4144518 VDS201A17859	4140258 VDS401A17859	17,859	.7031	51	73	3,1	123	48	18
4144519 VDS201A17900	4140259 VDS401A17900	17,900	.7047	51	73	3,1	123	48	18
4144590 VDS201A18000	4140449 VDS401A18000	18,000	.7087	51	73	3,1	123	48	18
4144591 VDS201A18100	4140450 VDS401A18100	18,100	.7126	55	79	3,1	131	50	20
4144592 VDS201A18200	4140451 VDS401A18200	18,200	.7165	55	79	3,2	131	50	20
4144593 VDS201A18258	4140452 VDS401A18258	18,258	.7188	55	79	3,2	131	50	20
4144594 VDS201A18300	4140463 VDS401A18300	18,300	.7205	55	79	3,2	131	50	20
4144595 VDS201A18400	4140464 VDS401A18400	18,400	.7244	55	79	3,2	131	50	20
4144596 VDS201A18500	4140465 VDS401A18500	18,500	.7283	55	79	3,2	131	50	20
4144597 VDS201A18600	4140466 VDS401A18600	18,600	.7323	55	79	3,2	131	50	20
4144598 VDS201A18654	4140467 VDS401A18654	18,654	.7344	55	79	3,2	131	50	20
4144599 VDS201A18700	4140468 VDS401A18700	18,700	.7362	55	79	3,2	131	50	20
4144600 VDS201A18800	4140469 VDS401A18800	18,800	.7402	55	79	3,3	131	50	20
4144601 VDS201A18900	4140470 VDS401A18900	18,900	.7441	55	79	3,3	131	50	20
4144602 VDS201A19000	4140471 VDS401A19000	19,000	.7480	55	79	3,3	131	50	20
4144603 VDS201A19050	4140472 VDS401A19050	19,050	.7500	55	79	3,3	131	50	20
4144604 VDS201A19100	4140473 VDS401A19100	19,100	.7520	55	79	3,3	131	50	20
4144605 VDS201A19200	4140474 VDS401A19200	19,200	.7559	55	79	3,3	131	50	20
4144606 VDS201A19300	4140475 VDS401A19300	19,300	.7598	55	79	3,4	131	50	20
4144607 VDS201A19400	4140476 VDS401A19400	19,400	.7638	55	79	3,4	131	50	20
4144608 VDS201A19500	4140477 VDS401A19500	19,500	.7677	55	79	3,4	131	50	20
4144609 VDS201A19600	4140478 VDS401A19600	19,600	.7717	55	79	3,4	131	50	20
4144610 VDS201A19700	4140479 VDS401A19700	19,700	.7756	55	79	3,4	131	50	20
4144611 VDS201A19800	4140480 VDS401A19800	19,800	.7795	55	79	3,4	131	50	20
4144612 VDS201A19900	4140481 VDS401A19900	19,900	.7835	55	79	3,5	131	50	20
4144613 VDS201A20000	4140482 VDS401A20000	20,000	.7874	55	79	3,5	131	50	20

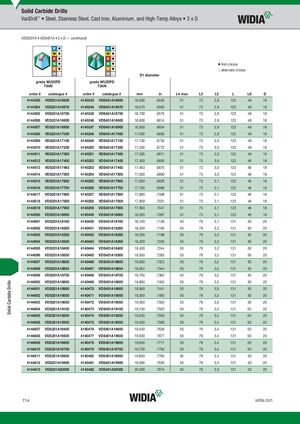

Общий каталог Widia 2017 - страница 1382
