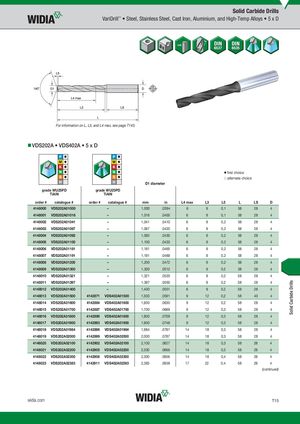

Общий каталог Widia 2017 - страница 1383
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
For information on L, L3, and L4 max, see page T143.
VDS202A • VDS402A • 5 x D
first choice alternate choice D1 diameter VDS202A • WU25PDgrade WU25PD VDS402A • WU25PDgrade WU25PD TiAlN TiAlN
| order # catalogue # | order # catalogue # | mm | in | L4 max | L3 | L5 | L | LS | D | |
| 4148000 VDS202A01000 | – | 1,000 | .0394 | 6 | 9 | 0,1 | 58 | 28 | 4 | |
| 4148001 VDS202A01016 | – | 1,016 | .0400 | 6 | 9 | 0,1 | 58 | 28 | 4 | |
| 4148002 VDS202A01041 | – | 1,041 | .0410 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148003 VDS202A01067 | – | 1,067 | .0420 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148004 VDS202A01092 | – | 1,092 | .0430 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148005 VDS202A01100 | – | 1,100 | .0433 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148006 VDS202A01181 | – | 1,181 | .0465 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148007 VDS202A01191 | – | 1,191 | .0469 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148008 VDS202A01200 | – | 1,200 | .0472 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148009 VDS202A01300 | – | 1,300 | .0512 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148010 VDS202A01321 | – | 1,321 | .0520 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148011 VDS202A01397 | – | 1,397 | .0550 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148012 VDS202A01400 | – | 1,400 | .0551 | 6 | 9 | 0,2 | 58 | 28 | 4 | |
| 4148013 VDS202A01500 | 4142871 VDS402A01500 | 1,500 | .0591 | 9 | 12 | 0,2 | 58 | 40 | 4 | |
| 4148014 VDS202A01600 | 4142884 VDS402A01600 | 1,600 | .0630 | 9 | 12 | 0,2 | 58 | 28 | 4 | |
| 4148015 VDS202A01700 | 4142887 VDS402A01700 | 1,700 | .0669 | 9 | 12 | 0,3 | 58 | 28 | 4 | |
| 4148016 VDS202A01800 | 4142890 VDS402A01800 | 1,800 | .0709 | 9 | 12 | 0,3 | 58 | 28 | 4 | |
| 4148017 VDS202A01900 | 4142893 VDS402A01900 | 1,900 | .0748 | 9 | 12 | 0,3 | 58 | 28 | 4 | |
| 4148018 VDS202A01984 | 4142896 VDS402A01984 | 1,984 | .0781 | 14 | 18 | 0,3 | 58 | 28 | 4 | |
| 4148019 VDS202A02000 | 4142899 VDS402A02000 | 2,000 | .0787 | 14 | 18 | 0,3 | 58 | 28 | 4 | |
| 4148020 VDS202A02100 | 4142902 VDS402A02100 | 2,100 | .0827 | 14 | 18 | 0,3 | 58 | 28 | 4 | |
| 4148021 VDS202A02200 | 4142905 VDS402A02200 | 2,200 | .0866 | 14 | 18 | 0,3 | 58 | 28 | 4 | |
| 4148022 VDS202A02300 | 4142908 VDS402A02300 | 2,300 | .0906 | 14 | 18 | 0,4 | 58 | 28 | 4 | |
| 4148023 VDS202A02383 | 4142911 VDS402A02383 | 2,383 | .0938 | 17 | 22 | 0,4 | 58 | 28 | 4 |
(continued)
