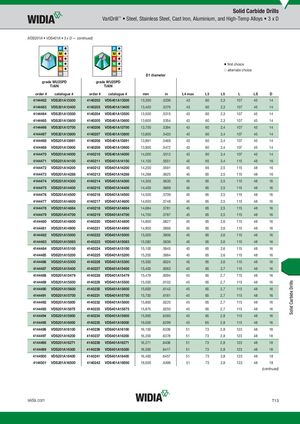

(VDS201A • VDS401A • 3 x D — continued)

		D1 dia	meter			�fir �al	ist choice ternate cho	ice
VDS201A • WU25PD VDS40 grade WU25PD TiAlN grad	1A • WU25PD e WU25PD TiAlN
order # catalogue # order #	catalogue #	mm	in	L4 max	L3	L5	L	LS	D
4144462 VDS201A13300 4140202	VDS401A13300	13,300	.5236	43	60	2,3	107	45	14
4144463 VDS201A13400 4140203	VDS401A13400	13,400	.5276	43	60	2,3	107	45	14
4144464 VDS201A13500 4140204	VDS401A13500	13,500	.5315	43	60	2,3	107	45	14
4144465 VDS201A13600 4140205	VDS401A13600	13,600	.5354	43	60	2,3	107	45	14
4144466 VDS201A13700 4140206	VDS401A13700	13,700	.5394	43	60	2,4	107	45	14
4144467 VDS201A13800 4140207	VDS401A13800	13,800	.5433	43	60	2,4	107	45	14
4144468 VDS201A13891 4140208	VDS401A13891	13,891	.5469	43	60	2,4	107	45	14
4144469 VDS201A13900 4140209	VDS401A13900	13,900	.5472	43	60	2,4	107	45	14
4144470 VDS201A14000 4140210	VDS401A14000	14,000	.5512	43	60	2,4	107	45	14
4144471 VDS201A14100 4140211	VDS401A14100	14,100	.5551	45	65	2,4	115	48	16
4144472 VDS201A14200 4140212	VDS401A14200	14,200	.5591	45	65	2,5	115	48	16
4144473 VDS201A14288 4140213	VDS401A14288	14,288	.5625	45	65	2,5	115	48	16
4144474 VDS201A14300 4140214	VDS401A14300	14,300	.5630	45	65	2,5	115	48	16
4144475 VDS201A14400 4140215	VDS401A14400	14,400	.5669	45	65	2,5	115	48	16
4144476 VDS201A14500 4140216	VDS401A14500	14,500	.5709	45	65	2,5	115	48	16
4144477 VDS201A14600 4140217	VDS401A14600	14,600	.5748	45	65	2,5	115	48	16
4144478 VDS201A14684 4140218	VDS401A14684	14,684	.5781	45	65	2,5	115	48	16
4144479 VDS201A14700 4140219	VDS401A14700	14,700	.5787	45	65	2,5	115	48	16
4144480 VDS201A14800 4140220	VDS401A14800	14,800	.5827	45	65	2,6	115	48	16
4144481 VDS201A14900 4140221	VDS401A14900	14,900	.5866	45	65	2,6	115	48	16
4144482 VDS201A15000 4140222	VDS401A15000	15,000	.5906	45	65	2,6	115	48	16
4144483 VDS201A15083 4140223	VDS401A15083	15,083	.5938	45	65	2,6	115	48	16
4144484 VDS201A15100 4140224	VDS401A15100	15,100	.5945	45	65	2,6	115	48	16
4144485 VDS201A15200 4140225	VDS401A15200	15,200	.5984	45	65	2,6	115	48	16
4144486 VDS201A15300 4140226	VDS401A15300	15,300	.6024	45	65	2,6	115	48	16
4144487 VDS201A15400 4140227	VDS401A15400	15,400	.6063	45	65	2,7	115	48	16
4144488 VDS201A15479 4140228	VDS401A15479	15,479	.6094	45	65	2,7	115	48	16
4144489 VDS201A15500 4140229	VDS401A15500	15,500	.6102	45	65	2,7	115	48	16
4144490 VDS201A15600 4140230	VDS401A15600	15,600	.6142	45	65	2,7	115	48	16
4144491 VDS201A15700 4140231	VDS401A15700	15,700	.6181	45	65	2,7	115	48	16
4144492 VDS201A15800 4140232	VDS401A15800	15,800	.6220	45	65	2,7	115	48	16
4144493 VDS201A15875 4140233	VDS401A15875	15,875	.6250	45	65	2,7	115	48	16
4144494 VDS201A15900 4140234	VDS401A15900	15,900	.6260	45	65	2,8	115	48	16
4144495 VDS201A16000 4140235	VDS401A16000	16,000	.6299	45	65	2,8	115	48	16
4144496 VDS201A16100 4140236	VDS401A16100	16,100	.6339	51	73	2,8	123	48	18
4144497 VDS201A16200 4140237	VDS401A16200	16,200	.6378	51	73	2,8	123	48	18
4144498 VDS201A16271 4140238	VDS401A16271	16,271	.6406	51	73	2,8	123	48	18
4144499 VDS201A16300 4140239	VDS401A16300	16,300	.6417	51	73	2,8	123	48	18
4144500 VDS201A16400 4140241	VDS401A16400	16,400	.6457	51	73	2,8	123	48	18
4144501 VDS201A16500 4140242	VDS401A16500	16,500	.6496	51	73	2,9	123	48	(continued) 18
