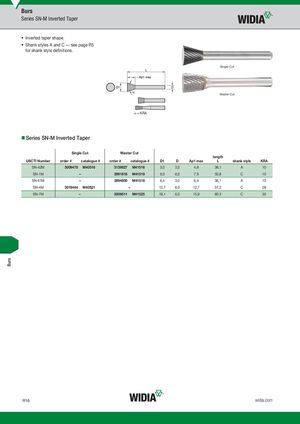

Series SN-M Inverted Taper
- Inverted taper shape.
- Shank styles A and C — see page R5 for shank style definitions.
Single Cut
Master Cut
_ = KRA
Series SN-M Inverted Taper
Single Cut Master Cut length
| USCTI Number | order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | shank style | KRA | |
| SN-42M | 3009478 M40516 | 3139827 M41516 | 3,0 | 3,0 | 4,8 | 38,1 | A | 10 | |
| SN-1M | – | 2991818 M41519 | 6,0 | 6,0 | 7,9 | 50,8 | C | 10 | |
| SN-51M | – | 2894600 M41518 | 6,4 | 3,0 | 6,4 | 38,1 | A | 10 | |
| SN-4M | 3019444 M40521 | – 12,7 | 6,0 | 12,7 | 57,2 | C | 28 | ||
| SN-7M | – | 3009511 M41525 | 19,1 | 6,0 | 15,9 | 60,3 | C | 30 |
