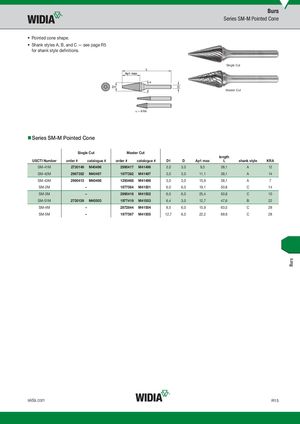

Series SM-M Pointed Cone
- Pointed cone shape.
- Shank styles A, B, and C — see page R5 for shank style definitions.
Single Cut
Master Cut
_ = KRA
Series SM-M Pointed Cone
Single Cut Master Cut length
| USCTI Number | order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | shank style | KRA | |
| SM-41M | 2730149 M40496 | 2990417 M41496 | 3,0 | 3,0 | 9,5 | 38,1 | A | 12 | |
| SM-42M | 2987352 M40497 | 1977382 M41497 | 3,0 | 3,0 | 11,1 | 38,1 | A | 14 | |
| SM-43M | 2990413 M40498 | 1293468 M41498 | 3,0 | 3,0 | 15,9 | 38,1 | A | 7 | |
| SM-2M | – | 1977564 M41501 | 6,0 | 6,0 | 19,1 | 50,8 | C | 14 | |
| SM-3M | – | 2990418 M41502 | 6,0 | 6,0 | 25,4 | 50,8 | C | 10 | |
| SM-51M | 2730139 M40503 | 1977419 M41503 | 6,4 | 3,0 | 12,7 | 47,6 | B | 22 | |
| SM-4M | – | 2872844 M41504 | 9,5 | 6,0 | 15,9 | 63,5 | C | 28 | |
| SM-5M | – | 1977567 M41505 | 12,7 | 6,0 | 22,2 | 69,9 | C | 28 |
