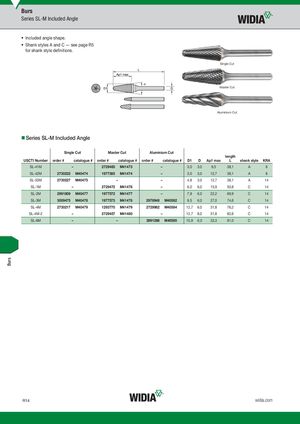

Series SL-M Included Angle
- Included angle shape.
- Shank styles A and C — see page R5 for shank style definitions.
Single Cut
Master Cut
Aluminium Cut
Series SL-M Included Angle
| USCTI Number | Single Cut order # catalogue # | Maste order # | r Cut catalogue # Alumini order # | um Cut catalogue # D1 | D | Ap1 max | length L | shank style | KRA |
| SL-41M | – | 2729483 | M41473 – | 3,0 | 3,0 | 9,5 | 38,1 | A | 8 |
| SL-42M | 2730232 M40474 | 1977385 | M41474 – | 3,0 | 3,0 | 12,7 | 38,1 | A | 8 |
| SL-53M | 2730227 M40475 | – | – | 4,8 | 3,0 | 12,7 | 38,1 | A | 14 |
| SL-1M | – | 2729472 | M41476 – | 6,0 | 6,0 | 15,9 | 50,8 | C | 14 |
| SL-2M | 2991809 M40477 | 1977572 | M41477 – | 7,9 | 6,0 | 22,2 | 69,9 | C | 14 |
| SL-3M | 3009475 M40478 | 1977573 | M41478 2978948 | M40582 9,5 | 6,0 | 27,0 | 74,6 | C | 14 |
| SL-4M | 2730217 M40479 | 1293770 | M41479 2729982 | M40584 12,7 | 6,0 | 31,8 | 76,2 | C | 14 |
| SL-4M-2 | – | 2729457 | M41480 – | 12,7 | 8,0 | 31,8 | 82,6 | C | 14 |
| SL-6M | – | – | 2991268 | M40585 15,9 | 6,0 | 33,3 | 81,0 | C | 14 |
