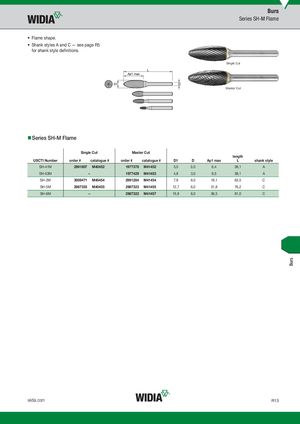

Series SH-M Flame
- Flame shape.
- Shank styles A and C — see page R5 for shank style definitions.
Single Cut
Master Cut
Series SH-M Flame
| USCTI Number | Single Cut order # catalogue # | Maste order # | r Cut catalogue # D1 | D | Ap1 max | length L | shank style |
| SH-41M | 2991807 M40452 | 1977378 | M41452 3,0 | 3,0 | 6,4 | 38,1 | A |
| SH-53M | – | 1977429 | M41453 4,8 | 3,0 | 9,5 | 38,1 | A |
| SH-2M | 3009471 M40454 | 2991284 | M41454 7,9 | 6,0 | 19,1 | 63,5 | C |
| SH-5M | 2987353 M40455 | 2987323 | M41455 12,7 | 6,0 | 31,8 | 76,2 | C |
| SH-6M | – | 2987322 | M41457 15,9 | 6,0 | 36,5 | 81,0 | C |
