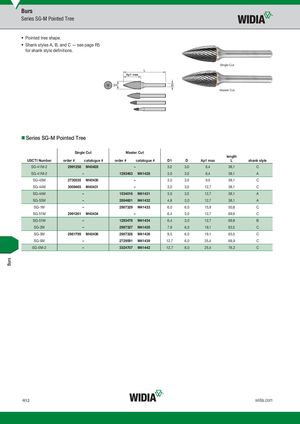

Series SG-M Pointed Tree
- Pointed tree shape.
- Shank styles A, B, and C — see page R5 for shank style definitions.
Single Cut
Master Cut
Series SG-M Pointed Tree
Single Cut Master Cut length
USCTI Number order # catalogue # order # catalogue # D1 D Ap1 max L shank style
| SG-41M-2 | 2991258 M40428 | – | 3,0 | 3,0 | 6,4 | 38,1 | C | ||
| SG-41M-2 | – | 1293463 M41428 | 3,0 | 3,0 | 6,4 | 38,1 | A | ||
| SG-43M | 2730335 M40430 | – | 3,0 | 3,0 | 9,5 | 38,1 | C | ||
| SG-44M | 3009465 M40431 | – | 3,0 | 3,0 | 12,7 | 38,1 | C | ||
| SG-44M | – | 1534016 M41431 | 3,0 | 3,0 | 12,7 | 38,1 | A | ||
| SG-53M | – | 2894601 M41432 | 4,8 | 3,0 | 12,7 | 38,1 | A | ||
| SG-1M | – | 2987329 M41433 | 6,0 | 6,0 | 15,9 | 50,8 | C | ||
| SG-51M | 2991261 M40434 | – | 6,4 | 3,0 | 12,7 | 69,9 | C | ||
| SG-51M | – | 1293476 M41434 | 6,4 | 3,0 | 12,7 | 69,9 | B | ||
| SG-2M | – | 2987327 M41435 | 7,9 | 6,0 | 19,1 | 63,5 | C | ||
| SG-3M | 2981799 M40436 | 2987326 M41436 | 9,5 | 6,0 | 19,1 | 63,5 | C | ||
| SG-5M | – | 2729591 M41439 | 12,7 | 6,0 | 25,4 | 69,9 | C | ||
| SG-5M-2 | – | 3324707 M41442 | 12,7 | 8,0 | 25,4 | 76,2 | C |
