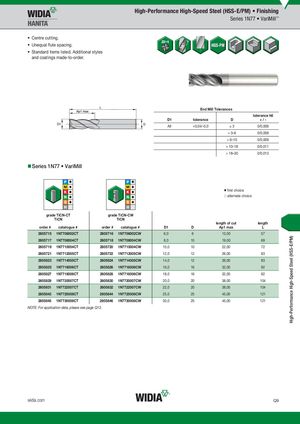

Series 1N77 VariMill™
- Centre cutting.
- Unequal flute spacing.
- Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances tolerance h6
| D1 | tolerance | D | + / - |
| All | +0,04/-0,0 | ) 3 | 0/0,006 |
> 3–6 0/0,008 > 6–10 0/0,009 > 10–18 0/0,011 > 18–30 0/0,013
Series 1N77 VariMill
first choice alternate choice
grade TiCN-CTTiCN-CT grade TiCN-CWTICN-CW TiCN TiCN length of cut length
| order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L |
| 2605715 1N7706002CT | 2605716 1N7706002CW | 6,0 | 6 | 13,00 | 57 |
| 2605717 1N7708004CT | 2605718 1N7708004CW | 8,0 | 10 | 19,00 | 69 |
| 2605719 1N7710004CT | 2605720 1N7710004CW | 10,0 | 10 | 22,00 | 72 |
| 2605721 1N7712005CT | 2605722 1N7712005CW | 12,0 | 12 | 26,00 | 83 |
| 2605823 1N7714005CT | 2605824 1N7714005CW | 14,0 | 12 | 26,00 | 83 |
| 2605825 1N7716006CT | 2605826 1N7716006CW | 16,0 | 16 | 32,00 | 92 |
| 2605827 1N7718006CT | 2605828 1N7718006CW | 18,0 | 16 | 32,00 | 92 |
| 2605829 1N7720007CT | 2605830 1N7720007CW | 20,0 | 20 | 38,00 | 104 |
| 2605831 1N7722007CT | 2605832 1N7722007CW | 22,0 | 20 | 38,00 | 104 |
| 2605843 1N7725008CT | 2605844 1N7725008CW | 25,0 | 25 | 45,00 | 121 |
| 2605845 1N7730008CT | 2605846 1N7730008CW | 30,0 | 25 | 45,00 | 121 |
NOTE: For application data, please see page Q13.
