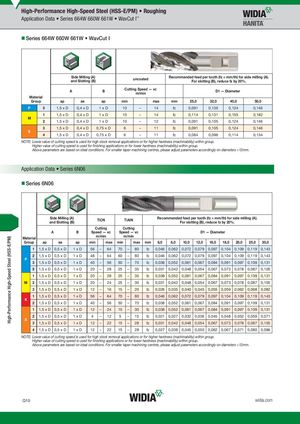

Application Data • Series 664W 660W 661W • WavCut I™
- Series 664W 660W 661W • WavCut I
Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). uncoated and Slotting (B) For slotting (B), reduce fz by 20%. Cutting Speed — vc
A B D1 — Diameter
m/min Material
| Group | ap | ae | ap | min | max | mm | 25,0 | 32,0 | 40,0 | 50,0 | ||
| P | 5 | 1,5 x D | 0,4 x D | 1 x D | 10 | – | 14 | fz | 0,091 | 0,105 | 0,124 | 0,146 |
| 1 | 1,5 x D | 0,4 x D | 1 x D | 10 | – | 14 | fz | 0,114 | 0,131 | 0,155 | 0,182 |
M
| 2 | 1,5 x D | 0,4 x D | 1 x D | 10 | – | 12 | fz | 0,091 | 0,105 | 0,124 | 0,146 |
| 3 | 1,5 x D | 0,4 x D | 0,75 x D | 6 | – | 11 | fz | 0,091 | 0,105 | 0,124 | 0,146 |
S
4 1,5 x D 0,4 x D 0,75 x D 6 – 11 fz 0,084 0,096 0,114 0,134
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
Application Data • Series 6N06
- Series 6N06
Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). TiCN TiAlN and Slotting (B) For slotting (B), reduce fz by 20%. Cutting Cutting
A B Speed — vc Speed — vc D1 — Diameter
m/min m/min Material
| Group | ap | ae | ap | min | max | min | max | mm | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 | 25,0 | 30,0 | |||
| 1 | 1,5 x D | 0,5 x D | 1 x D | 56 | – | 64 | 70 | – | 80 | fz | 0,046 | 0,062 | 0,072 | 0,079 | 0,097 | 0,104 | 0,109 | 0,119 | 0,143 | |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 48 | – | 64 | 60 | – | 80 | fz | 0,046 | 0,062 | 0,072 | 0,079 | 0,097 | 0,104 | 0,109 | 0,119 | 0,143 |
P
| 3 | 1,5 x D | 0,5 x D | 1 x D | 40 | – | 56 | 50 | – | 70 | fz | 0,038 | 0,052 | 0,061 | 0,067 | 0,084 | 0,091 | 0,097 | 0,109 | 0,131 |
| 5 | 1,5 x D | 0,5 x D | 1 x D | 20 | – | 28 | 25 | – | 35 | fz | 0,031 | 0,042 | 0,048 | 0,054 | 0,067 | 0,073 | 0,078 | 0,087 | 0,105 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 20 | – | 28 | 25 | – | 35 | fz | 0,038 | 0,052 | 0,061 | 0,067 | 0,084 | 0,091 | 0,097 | 0,109 | 0,131 |
| M 2 | 1,5 x D | 0,5 x D | 1 x D | 20 | – | 24 | 25 | – | 30 | fz | 0,031 | 0,042 | 0,048 | 0,054 | 0,067 | 0,073 | 0,078 | 0,087 | 0,105 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 12 | – | 16 | 15 | – | 20 | fz | 0,026 | 0,035 | 0,040 | 0,045 | 0,055 | 0,059 | 0,062 | 0,068 | 0,082 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 56 | – | 64 | 70 | – | 80 | fz | 0,046 | 0,062 | 0,072 | 0,079 | 0,097 | 0,104 | 0,109 | 0,119 | 0,143 |
K
| 2 | 1,5 x D | 0,5 x D | 1 x D | 40 | – | 56 | 50 | – | 70 | fz | 0,038 | 0,052 | 0,061 | 0,067 | 0,084 | 0,091 | 0,097 | 0,109 | 0,131 |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 12 | – | 24 | 15 | – | 30 | fz | 0,038 | 0,052 | 0,061 | 0,067 | 0,084 | 0,091 | 0,097 | 0,109 | 0,131 |
| 2 | 1,5 x D | 0,5 x D | 1 x D | 4 | – | 12 | 5 | – | 15 | fz | 0,021 | 0,027 | 0,032 | 0,036 | 0,045 | 0,048 | 0,052 | 0,059 | 0,071 |
S
| 3 | 1,5 x D | 0,5 x D | 1 x D | 12 | – | 22 | 15 | – | 28 | fz | 0,031 | 0,042 | 0,048 | 0,054 | 0,067 | 0,073 | 0,078 | 0,087 | 0,105 |
| 4 | 1,5 x D | 0,5 x D | 1 x D | 12 | – | 22 | 15 | – | 28 | fz | 0,027 | 0,038 | 0,045 | 0,050 | 0,062 | 0,067 | 0,071 | 0,080 | 0,096 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
