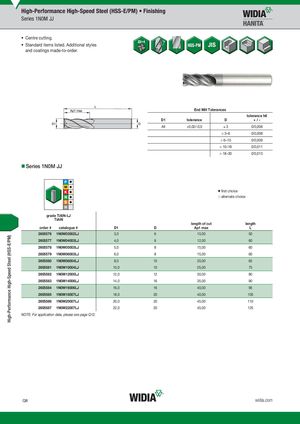

Series 1N0M JJ
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances tolerance h6
| D1 | tolerance | D | + / - |
| All | +0,02/-0,0 | ) 3 | 0/0,006 |
> 3–6 0/0,008 > 6–10 0/0,009 > 10–18 0/0,011 > 18–30 0/0,013
Series 1N0M JJ
first choice alternate choice
grade TiAlN-LJTiAlN TiAlN length of cut length
| order # catalogue # | D1 | D | Ap1 max | L |
| 2605576 1N0M03002LJ | 3,0 | 6 | 10,00 | 50 |
| 2605577 1N0M04003LJ | 4,0 | 8 | 12,00 | 60 |
| 2605578 1N0M05003LJ | 5,0 | 8 | 15,00 | 60 |
| 2605579 1N0M06003LJ | 6,0 | 8 | 15,00 | 60 |
| 2605580 1N0M08004LJ | 8,0 | 10 | 20,00 | 65 |
| 2605581 1N0M10004LJ | 10,0 | 10 | 25,00 | 75 |
| 2605582 1N0M12005LJ | 12,0 | 12 | 30,00 | 80 |
| 2605583 1N0M14006LJ | 14,0 | 16 | 35,00 | 90 |
| 2605584 1N0M16006LJ | 16,0 | 16 | 40,00 | 95 |
| 2605585 1N0M18007LJ | 18,0 | 20 | 40,00 | 105 |
| 2605586 1N0M20007LJ | 20,0 | 20 | 45,00 | 110 |
| 2605587 1N0M22007LJ | 22,0 | 20 | 45,00 | 125 |
NOTE: For application data, please see page Q12.
