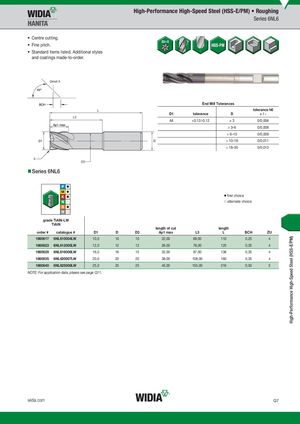

Series 6NL6
- Centre cutting.
- Fine pitch.
- Standard items listed. Additional styles and coatings made-to-order.
Detail X
| End Mill T | olerances | ||
| D1 | tolerance | D | tolerance h6 + / - |
| All | +0,12/-0,12 | �3 | 0/0,006 |
| > 3–6 | 0/0,008 | ||
| > 6–10 | 0/0,009 | ||
| > 10–18 | 0/0,011 | ||
| > 18–30 | 0/0,013 |
L3
X D3
Series 6NL6
first choice alternate choice
grade TiAlN-LWTiAlN-LW TiAlN
| TiAlN-LW grade TiAlN-LW TiAlN order # catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L | BCH | ZU |
| 1660617 6NL610004LW | 10,0 | 10 | 10 | 22,00 | 69,00 | 110 | 0,25 | 4 |
| 1660623 6NL612005LW | 12,0 | 12 | 12 | 26,00 | 78,00 | 125 | 0,35 | 4 |
| 1660629 6NL616006LW | 16,0 | 16 | 15 | 32,00 | 87,00 | 138 | 0,35 | 4 |
| 1660635 6NL620007LW | 20,0 | 20 | 20 | 38,00 | 108,00 | 160 | 0,35 | 4 |
| 1660640 6NL625008LW | 25,0 | 25 | 25 | 45,00 | 155,00 | 216 | 0,50 | 5 |
