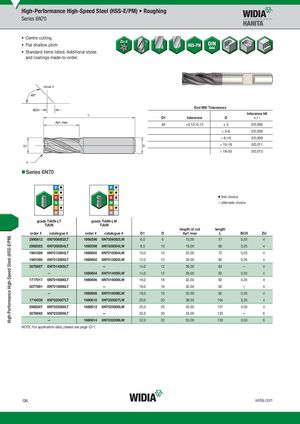

- Centre cutting.
- Flat shallow pitch.
- Standard items listed. Additional styles and coatings made-to-order.
Detail X
X
Series 6N70
End Mill Tolerances tolerance h6
| D1 | tolerance | D | + / - |
| All | +0,12/-0,12 | ) 3 | 0/0,006 |
> 3–6 0/0,008 > 6–10 0/0,009 > 10–18 0/0,011 > 18–30 0/0,013
first choice alternate choice
grade TiAlN-LTTiAlN-LW grade TiAlN-LWTiAlN-LT TiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | BCH | ZU |
| 2990812 6N7006002LT | 1660596 6N7006002LW | 6,0 | 6 | 13,00 | 57 | 0,25 | 4 |
| 2992083 6N7008004LT | 1660598 6N7008004LW | 8,0 | 10 | 19,00 | 69 | 0,25 | 4 |
| 1981089 6N7010004LT | 1660600 6N7010004LW | 10,0 | 10 | 22,00 | 72 | 0,25 | 4 |
| 1981090 6N7012005LT | 1660602 6N7012005LW | 12,0 | 12 | 26,00 | 83 | 0,35 | 4 |
| 3078687 6N7014005LT | 14,0 | 12 | 26,00 | 83 | 4 |
- 1660604 6N7014005LW 14,0 12 26,00 83 0,35 4
| 1717017 6N7016006LT | 1660606 6N7016006LW | 16,0 | 16 | 32,00 | 92 | 0,35 | 4 | |
| 3077681 6N7018006LT | 18,0 | 16 | 32,00 | 92 | 4 |
- 1660608 6N7018006LW 18,0 16 32,00 92 0,35 4
| 1716039 6N7020007LT | 1660610 6N7020007LW | 20,0 | 20 | 38,00 | 104 | 0,35 | 4 | |
| 2992087 6N7025008LT | 1660612 6N7025008LW | 25,0 | 25 | 45,00 | 121 | 0,50 | 4 | |
| 3078692 6N7032009LT | 32,0 | 20 | 53,00 | 133 | 6 |
- 1660614 6N7032009LW 32,0 32 53,00 133 0,50 6
NOTE: For application data, please see page Q11.
