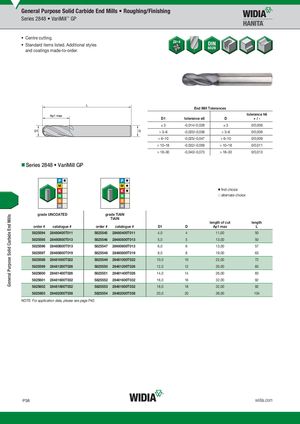

Общий каталог Widia 2017 - страница 1316
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances tolerance h6
| D1 | tolerance e8 | D | + / - | |
| ) 3 | -0,014/-0,028 | ) 3 | 0/0,006 | |
| > 3–6 | -0,020/-0,038 | > 3–6 | 0/0,008 | |
| > 6–10 | -0,025/-0,047 | > 6–10 | 0/0,009 | |
| > 10–18 | -0,032/-0,059 | > 10–18 | 0/0,011 | |
| > 18–30 | -0,040/-0,073 | > 18–30 | 0/0,013 |
Series 2848 VariMill GP
first choice alternate choice
grade UNCOATEDUNCOATED - .. grade TiAlNTiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L |
| 5825594 28480400T011 | 5825545 28480400T011 | 4,0 | 4 | 11,00 | 50 |
| 5825595 28480500T013 | 5825546 28480500T013 | 5,0 | 5 | 13,00 | 50 |
| 5825596 28480600T013 | 5825547 28480600T013 | 6,0 | 6 | 13,00 | 57 |
| 5825597 28480800T019 | 5825548 28480800T019 | 8,0 | 8 | 19,00 | 63 |
| 5825598 28481000T022 | 5825549 28481000T022 | 10,0 | 10 | 22,00 | 72 |
| 5825599 28481200T026 | 5825550 28481200T026 | 12,0 | 12 | 26,00 | 83 |
| 5825600 28481400T026 | 5825551 28481400T026 | 14,0 | 14 | 26,00 | 83 |
| 5825601 28481600T032 | 5825552 28481600T032 | 16,0 | 16 | 32,00 | 92 |
| 5825602 28481800T032 | 5825553 28481800T032 | 18,0 | 18 | 32,00 | 92 |
| 5825603 28482000T038 | 5825554 28482000T038 | 20,0 | 20 | 38,00 | 104 |
NOTE: For application data, please see page P42.
