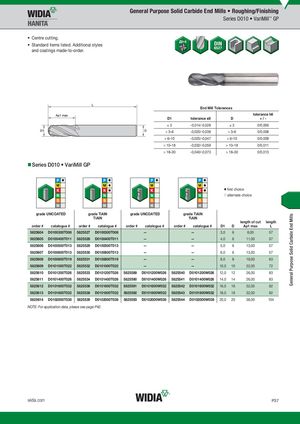

Series D010 VariMill™ GP
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances tolerance h6
| D1 | tolerance e8 | D | + / - | |
| ) 3 | -0,014/-0,028 | ) 3 | 0/0,006 | |
| > 3–6 | -0,020/-0,038 | > 3–6 | 0/0,008 | |
| > 6–10 | -0,025/-0,047 | > 6–10 | 0/0,009 | |
| > 10–18 | -0,032/-0,059 | > 10–18 | 0/0,011 | |
| > 18–30 | -0,040/-0,073 | > 18–30 | 0/0,013 |
Series D010 VariMill GP
first choice alternate choice
grade UNCOATEDUNCOATED - .. grade TiAlNTiAlN grade UNCOATEDUNCOATED - .. grade TiAlNTiAlN
TiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # | order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | ||
| 5825604 D0100300T008 | 5825527 D0100300T008 | — | — | 3,0 | 6 | 8,00 | 57 | ||
| 5825605 D0100400T011 | 5825528 D0100400T011 | — | — | 4,0 | 6 | 11,00 | 57 | ||
| 5825606 D0100500T013 | 5825529 D0100500T013 | — | — | 5,0 | 6 | 13,00 | 57 | ||
| 5825607 D0100600T013 | 5825530 D0100600T013 | — | — | 6,0 | 6 | 13,00 | 57 | ||
| 5825608 D0100800T019 | 5825531 D0100800T019 | — | — | 8,0 | 8 | 19,00 | 63 | ||
| 5825609 D0101000T022 | 5825532 D0101000T022 | — | — | 10,0 | 10 | 22,00 | 72 | ||
| 5825610 D0101200T026 | 5825533 D0101200T026 | 5825589 D0101200W026 | 5825540 D0101200W026 | 12,0 | 12 | 26,00 | 83 | ||
| 5825611 D0101400T026 | 5825534 D0101400T026 | 5825590 D0101400W026 | 5825541 D0101400W026 | 14,0 | 14 | 26,00 | 83 | ||
| 5825612 D0101600T032 | 5825536 D0101600T032 | 5825591 D0101600W032 | 5825542 D0101600W032 | 16,0 | 16 | 32,00 | 92 | ||
| 5825613 D0101800T032 | 5825538 D0101800T032 | 5825592 D0101800W032 | 5825543 D0101800W032 | 18,0 | 18 | 32,00 | 92 | ||
| 5825614 D0102000T038 | 5825539 D0102000T038 | 5825593 D0102000W038 | 5825544 D0102000W038 | 20,0 | 20 | 38,00 | 104 |
NOTE: For application data, please see page P42.
